• SAWO sauna heaters tower TH Wall Ni
  • SAWO Tower Wall

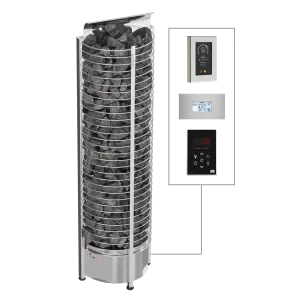

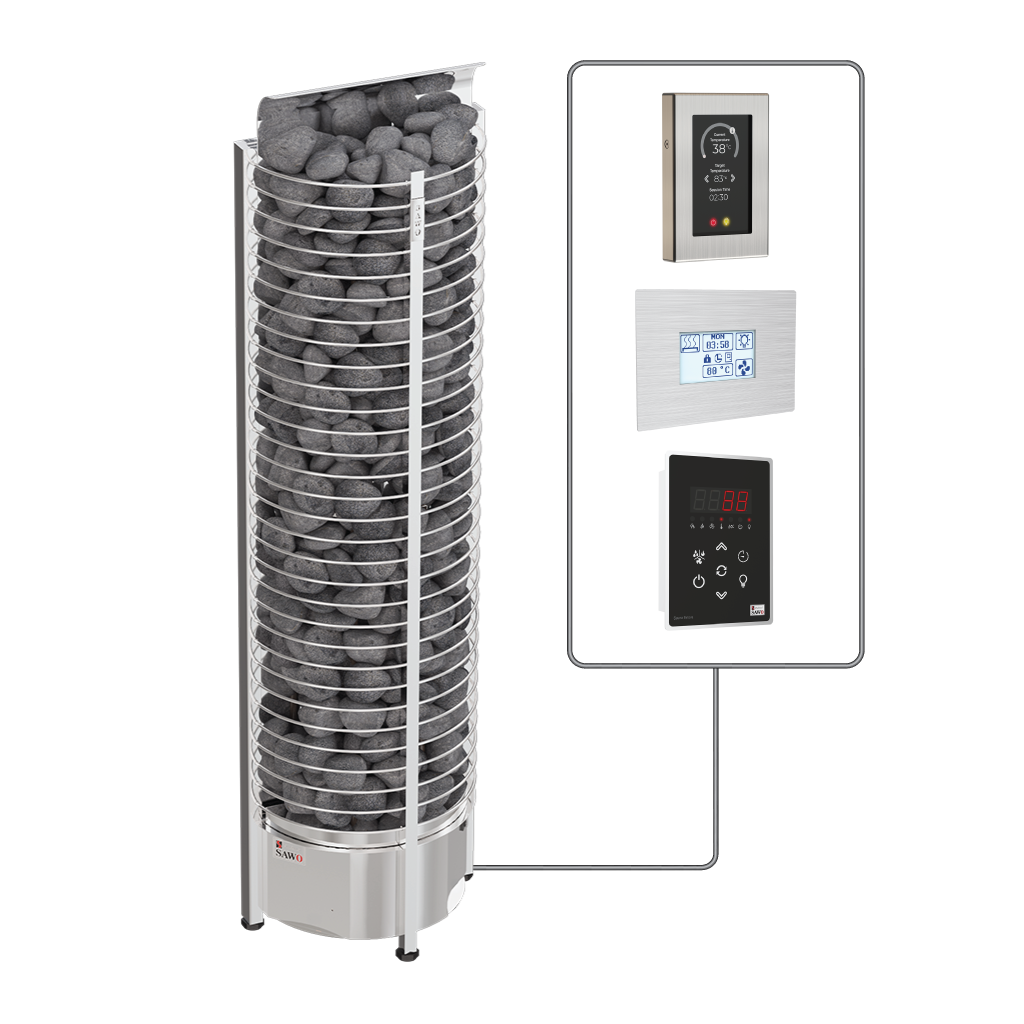

Tower Wall Ni

» Power range 10,5 – 24,0kW
» Control: Innova operated
» Sauna Experience: Mild smooth heat, Humid
     » Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs
» Optional Heater Guard and Integration Collar

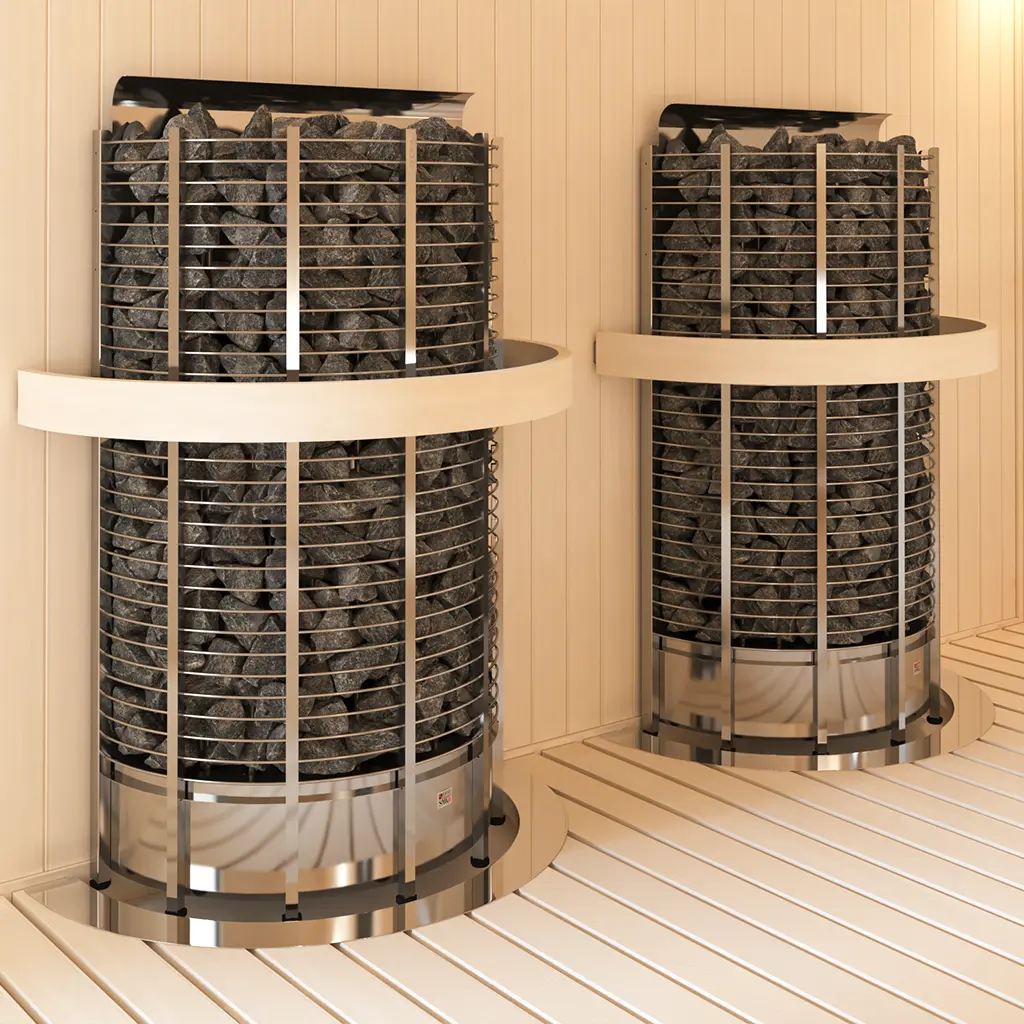

Tower Wall is a timelessly elegant heater that will release long-lasting mild, steady and humid heat.

Wall model will save space on the layout, with still being a show-stopper of the sauna. Suitable for small to extra-large saunas (2m3-40m3), to increase capacity to over 24kW you can always combine 2 Tower Walls back-to-back, which enables to grow power capacity as much as until 48kW.

Specifications

Technical Data

SAWO Tower Wall Ni minimum safety distances

Heater Model kW Sauna Room
min (m3) max		 Size of heater (mm)
Width Depth Height		 Stones (KG)
w/o Stone Spacer		 Stones (KG)
with Stone Spacer		 Minimum Safety Distances
A | B
TH6-105Ni-WL 10,5 9 – 16 550 – 320 – 1395 160 105 100 1900
TH6-120Ni-WL 12,0 11 – 18 550 – 320 – 1395 160 105 100 2100
TH9-105Ni-WL 10,5 10 – 16 650 – 355 – 1395 180 115 100 2100
TH9-120Ni-WL 12,0 11 – 20 650 – 355 – 1395 180 115 100 2100
TH9-150Ni-WL 15,0 14 – 25 650 – 355 – 1395 180 115 100 2100
TH12-150Ni-WL 15,0 15 – 26 790 – 425 – 1395 250 165 100 2300
TH12-180Ni-WL 18,0 18 – 30 790 – 425 – 1395 250 165 100 2300
TH12-210Ni-WL 21,0 22 – 35 790 – 425 – 1395 250 165 100 2300
TH12-240Ni-WL 24,0 24 – 40 790 – 425 – 1395 250 165 100 2300

SAWO Tower Wall Ni Manual



Safety Features

Energy Efficient

Durable Contructions

Efficient Heating

User-Friendly Controls

ACCESSORIES

TH GUARD W2 WL D
TH GUARD W2 WL A
Wall Wooden Heater Guard
(Cedar)

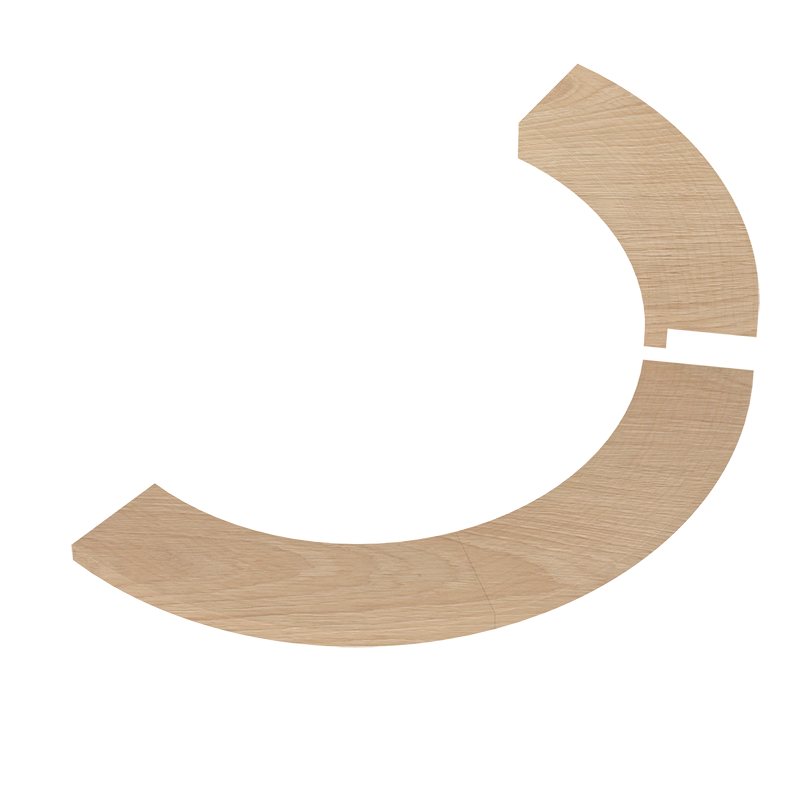

TH COLLAR W4 WL D
TH COLLAR W4 WL A

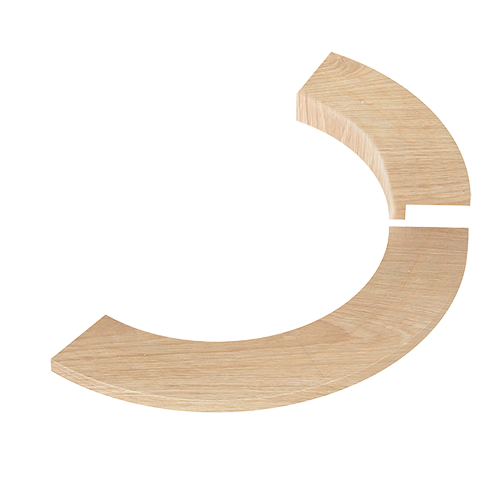

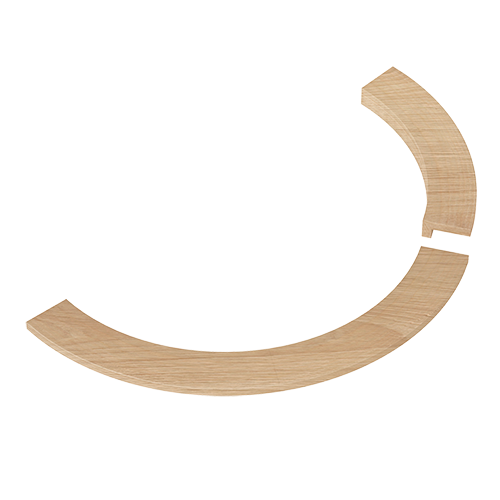

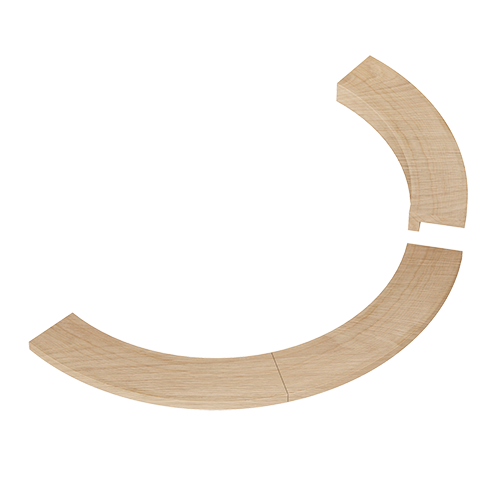

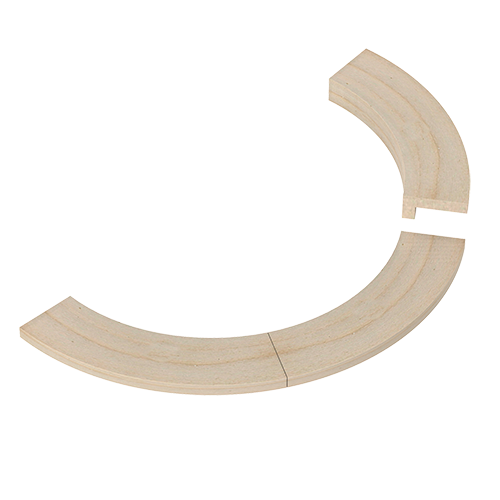

Wall Integration Collar
(Cedar)
TH COLLAR S4 WL
Wall Integration Collar
(Soapstone)
TH COLLAR ST4 WL
TH COLLAR ST4 WL ARI3 Wall Ni2
Wall Integration Collar
(Stainless)
Sauna Stones
Sauna Stones
(size: 20kg)
