Tower Corner Ni separator SAWO

Power rating from 10,5 to 12kW

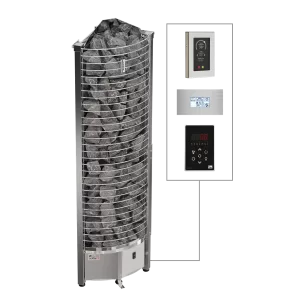

Tower Corner Ni

» Power range 10,5 – 12,0kW

» Control: Innova operated
» Sauna Experience: Mild smooth heat, Humid

» Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs

» Optional Heater Guard and Integration Collar

Tower Corner is designed to fit into tight corners, this model maximizes your sauna layout without sacrificing style.

The Tower Corner will ensure a gentle, soothing warmth for a truly relaxing experience.

Suitable for small to large saunas (2m³ – 18m³).

INQUIRE

Specifications

Technical Data

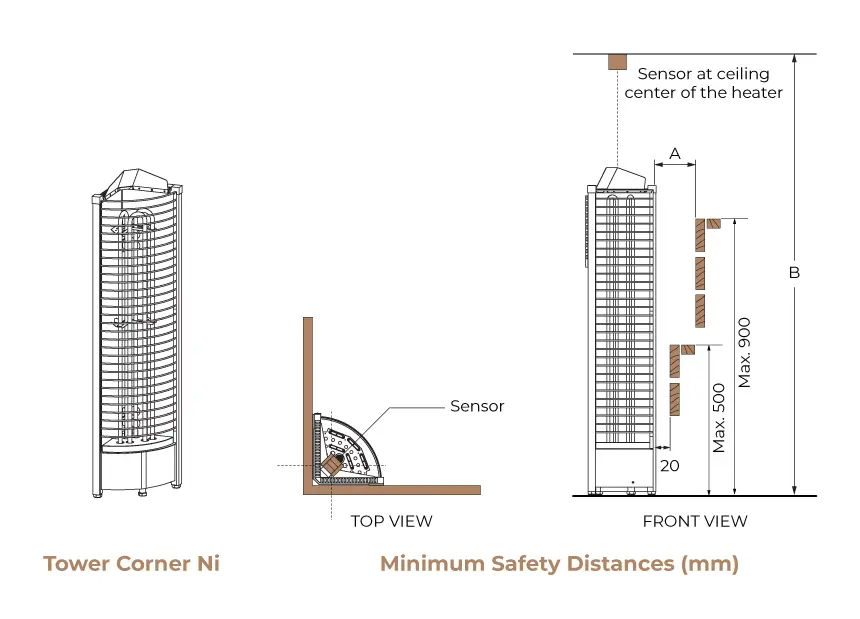

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG) w/o Stone Spacer	Stones (KG) with Stone Spacer	Minimum Safety Distances A \| B
TH6-105Ni-CNR	10,5	9 – 16	415 – 415 – 1380	160	180	100	1900
TH6-120Ni-CNR	12,0	11 – 18	415 – 415 – 1380	160	180	100	2100

Resources

SAWO Tower Corner Ni Manual

Safety Features

Energy Efficient

Durable Contructions

Efficient Heating

User-Friendly Controls

ACCESSORIES

Corner Wooden Heater Guard

(Cedar)

View

Corner Integration Collar

(Cedar)

View

Corner Integration Collar

(Soapstone)

View

Corner Integration Collar

(Stainless)

View

Sauna Stones

(size: 20kg)

View

Model
Model	Width	Depth (mm)	Height
TH-GUARD-W2-CNR-D \| A	595	237	90
TH-GUARD-W4-CNR-D \| A	670	252	90
TH-GUARD-W6-CNR-D \| A	755	200	120

Model
Model	Width	Depth (mm)	Height
TH-COLLAR-W2-CNR-D \| A	230	122	150
TH-COLLAR-W4-CNR-D \| A	231	121	150
TH-COLLAR-W6-CNR-D \| A	261	123	150

Model
Model	Width	Depth (mm)	Height
TH-COLLAR-S2-CNR	240	130	150
TH-COLLAR-S4-CNR	205	150	135
TH-COLLAR-S6-CNR	210	185	45

Model
Model	Width	Depth (mm)	Height
TH-COLLAR-ST2-CNR	630	210	70
TH-COLLAR-ST4-CNR	675	210	65
TH-COLLAR-ST6-CNR	640	640	42
