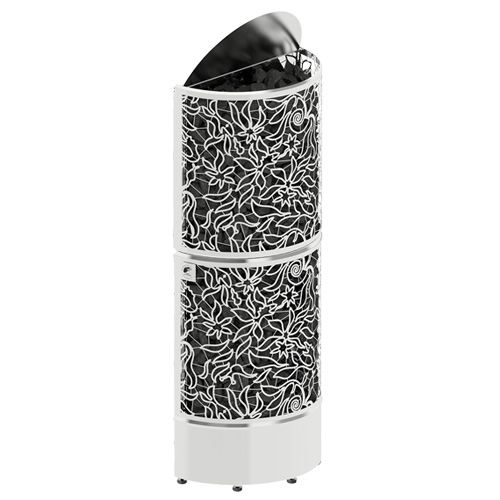

Heaterking – Wall

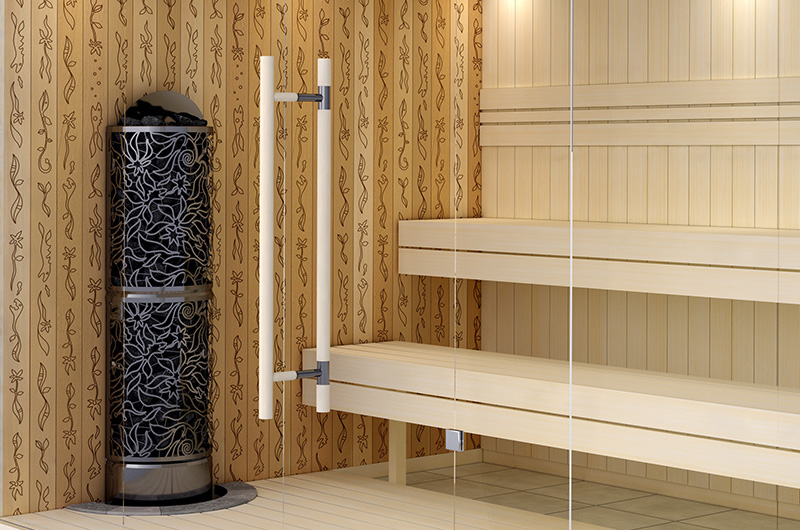

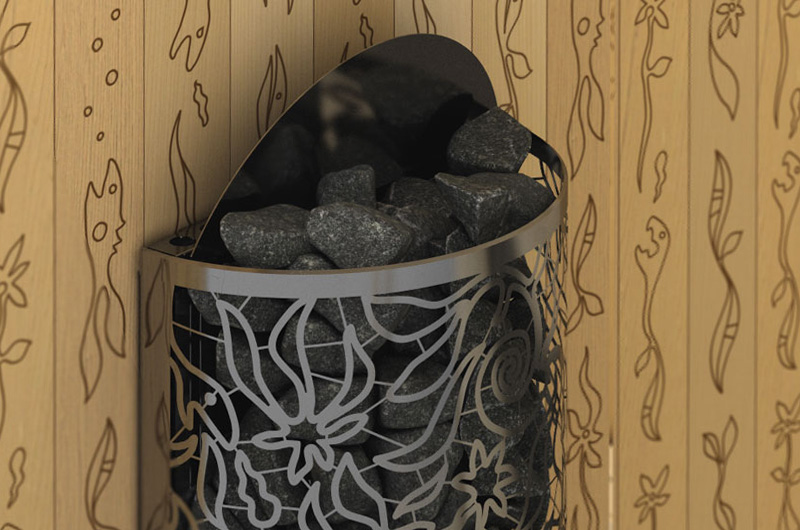

Wrapping up a pile of stones as the actual heater for your sauna delivers such a great steam experience! Of course you need a grid of some sort to keep the stones in place, and I didn’t want this grid to look dead boring. So I applied my “Junglefire” pattern as the stainless steel grid to keep the stones in place. A strong and visual steam provider.
Download Brochure

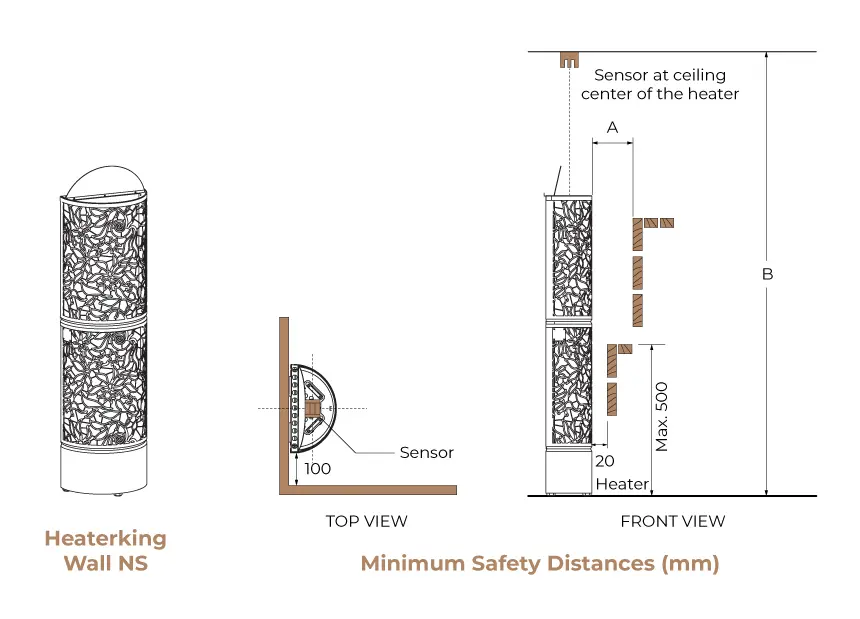

Installation Diagram

Dragonfire Heaters:

∙ Heaterking Round
∙ Heaterking Wall
∙ Heaterking Corner
∙ Fiberjungle
∙ Scandifire
∙ Minidragon

Technical Data

User Manual
Heater Model KW Sauna Room
min (m3) max		 Control Size of heater (mm)
WIDTH DEPTH HEIGHT		 Stones (kG)
w/o Stone Spacer		 Stones (kG)
with Stone Spacer
DRFT3-35NS-WL 3,5 3 – 6 separate 395 – 220 – 1440 80 60
DRFT3-45NS-WL 4,5 3 – 6 separate 395 – 220 – 1440 80 60
DRFT3-60NS-WL 6 5 – 8 separate 395 – 220 – 1440 80 60
DRFT6-80NS-WL 8 7 – 14 separate 550 – 300 – 1475 160 105
DRFT6-90NS-WL 9 8 – 15 separate 550 – 300 – 1475 160 105
DRFT6-105NS-WL 10,5 9 – 16 separate 550 – 300 – 1475 160 105
DRFT6-120NS-WL 12 11 – 18 separate 550 – 300 – 1475 160 105
DRFT9-105NS-WL 10,5 10 – 16 separate 650 – 350 – 1510 180 115
DRFT9-120NS-WL 12 11 – 20 separate 650 – 350 – 1510 180 115
DRFT9-150NS-WL 15 14 – 25 separate 650 – 350 – 1510 180 115
DRFT9-180NS-WL 18 18 – 28 separate 650 – 350 – 1510 180 115
DRFT12-150NS-WL 15 15 – 26 separate 790 – 420 – 1545 250 165
DRFT12-180NS-WL 18 18 – 30 separate 790 – 420 – 1545 250 165
DRFT12-210NS-WL 21 22 – 35 separate 790 – 420 – 1545 250 165
DRFT12-240NS-WL 24 24 – 40 separate 790 – 420 – 1545 250 165

Ni Version (built-in Innova Controller)

User Manual (Ni)
Heater Model KW Sauna Room
min (m3) max		 Control Size of heater (mm)
WIDTH DEPTH HEIGHT		 Stones (kG)
w/o Stone Spacer		 Stones (kG)
with Stone Spacer
DRFT6-80Ni-WL 8 7 – 14 Innova 550 – 300 – 1475 160 105
DRFT6-90Ni-WL 9 8 – 15 Innova 550 – 300 – 1475 160 105
DRFT6-105Ni-WL 10,5 9 – 16 Innova 550 – 300 – 1475 160 105
DRFT6-120Ni-WL 12 11 – 18 Innova 550 – 300 – 1475 160 105
DRFT9-105Ni-WL 10,5 10 – 16 Innova 650 – 350 – 1510 180 115
DRFT9-120Ni-WL 12 11 – 20 Innova 650 – 350 – 1510 180 115
DRFT9-150Ni-WL 15 14 – 25 Innova 650 – 350 – 1510 180 115
DRFT9-180Ni-WL 18 18 – 28 Innova 650 – 350 – 1510 180 115
DRFT12-150Ni-WL 15 15 – 26 Innova 790 – 420 – 1545 250 165
DRFT12-180Ni-WL 18 18 – 30 Innova 790 – 420 – 1545 250 165
DRFT12-210Ni-WL 21 22 – 35 Innova 790 – 420 – 1545 250 165
DRFT12-240Ni-WL 24 24 – 40 Innova 790 – 420 – 1545 250 165
