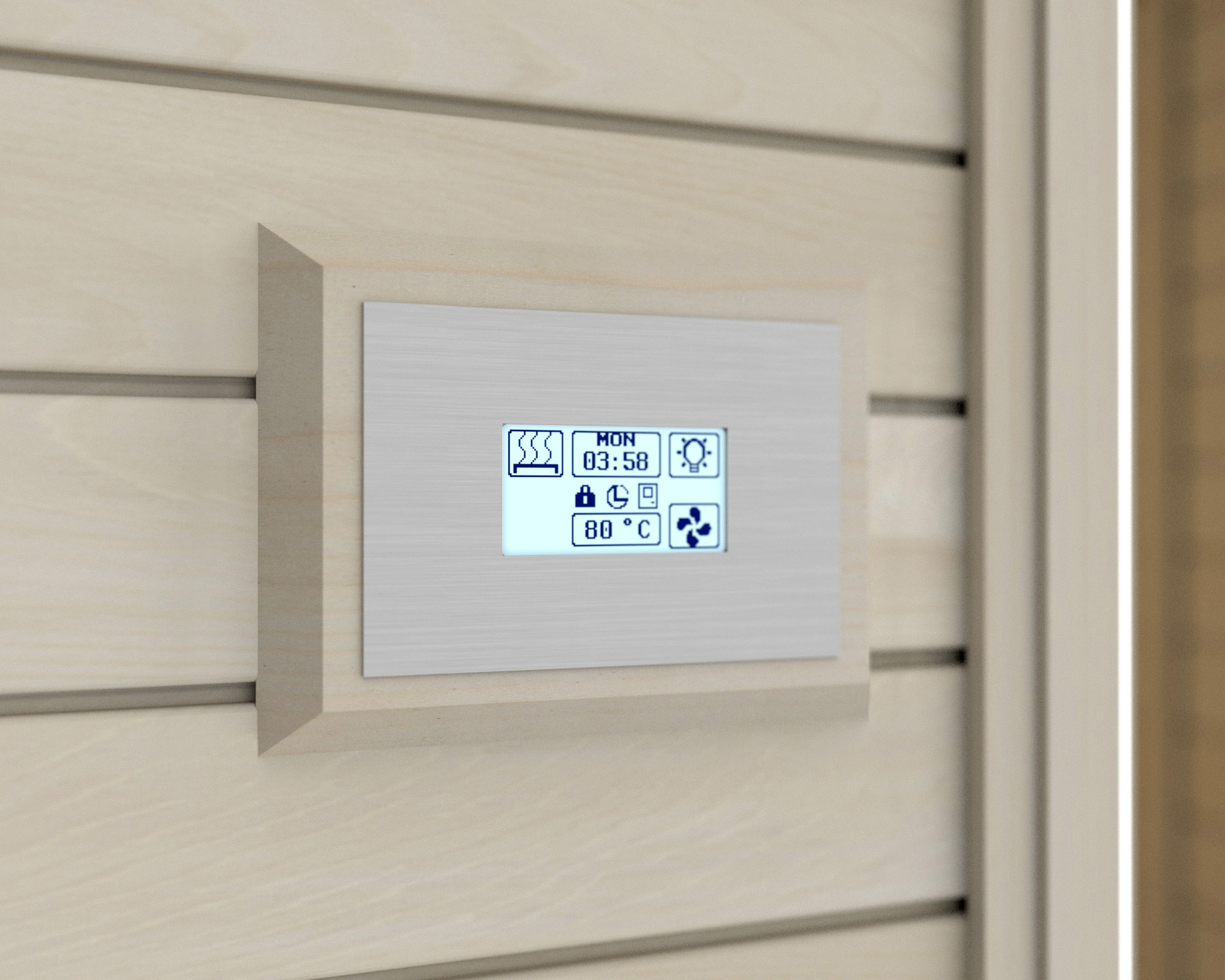

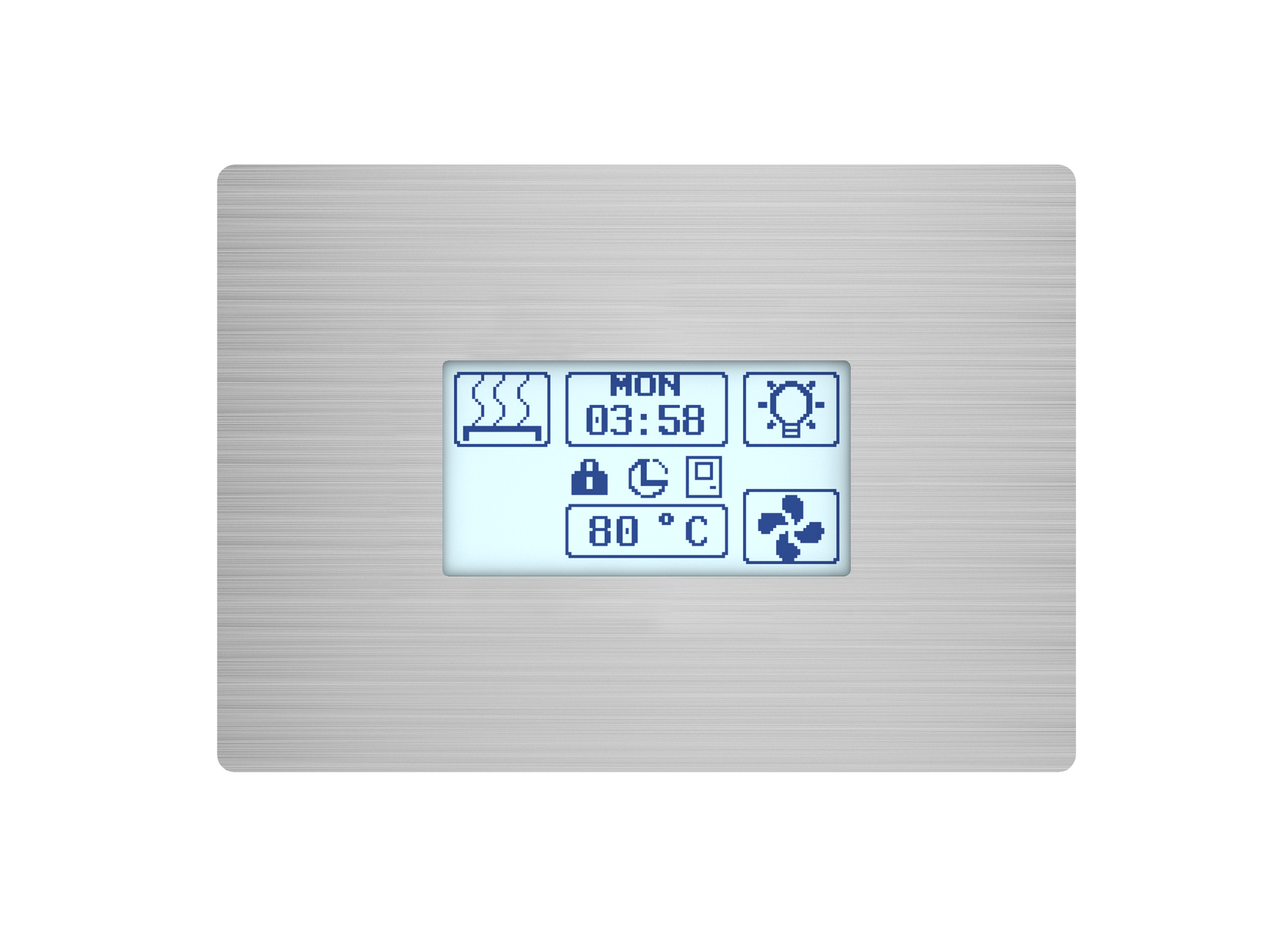

Innova Stainless Steel Touch

Modern and stylish Innova Stainless Steel Touch is equipped with useful features which make your sauna experience more enjoyable.
User Manual
Download Brochure

∙ Innova 2.0 Power Controller
∙ Innova 2.0 Contactor Unit
∙ Temperature Sensors
∙ Interface Holders

• Animated buttons for easy use
• Weekly timer for complete weeks’ sauna sessions
• Optional light dimmer, fan and Combi functions
• Remote controlling with potential free contact
• Auto-drying of sauna (with optional fan-feature)
• Easy mode for simplified use
• Key lock to prevent unauthorized person from changing settings
• Temperature display in Celcius or Fahrenheit
• Built-in power consumption counter
• Blackout memory for preserving your settings during electrical failure
• Additional bench temperature sensor can be installed for more precise temperature measuring
• Additional humidity & temperature sensor can be installed for measuring relative humidity

Product Codes

INT-S-SST (Stainless Steel Touch Interface)
INP-C-V2 (Power Controller)
INP-C-DF-V2 (Power Controller with Dimmer and Fan Features)
INP-C-C-V2 (Power Controller with Combi Feature)
INP-C-CDF-V2 (Power Controller with Dimmer, Fan and Combi Features)

Technical Data

Description Power Rating Remarks
Control
Rated Power 3 Phases
15kW AC1 (3x5kW)
Rated Voltage 3 Phases
400V 3N~
Rated Power Single Phases
9kW AC1
Rated Voltage Single Phases
230V 1N~
Frequency
50/60Hz
Switching capacity per phase
21A
Sauna temperature range
40-110°C
Maximum session time(preset)
4,6,12,18,24h
Restrictions apply according to IEC/EN 60335-2-53
Dimensions INNOVA S types
User Interface
(W) 180 x (H) 105 x (D) 31
Power Controller
(W) 265 x (H) 245 x (D) 75
Dimensions INNOVA B types
(W) 265 x (H) 245 x (D) 75
Weight INNOVA S types
User Interface
150g (Touch)
Power Controller
1500g
Weight INNOVA B types
1630g(Touch)
Steamer
Optional
Rated Power 3 Phases
5kW AC1
Rated Power Single Phases
3kW AC1
Rated Voltage
230V 1N~
Switching capacity
21A(3 Phases), 13A (1 Phase)
Maximum sauna temperature for steamer operation
80°C or *55°C *Depending on the type of Sensor 2.
Automatic water filling
Optional
Automatic drain valve
Optional
Cabin Light
Dimmer optional
Rating
230V 1N~,100W AC1
Fan
Optional (with speed control)
Rating
230V 1N~,0.5A
Contactor Unit
Additional Power expansion to maximum of 30kW
Rated Power 3 Phases
15kW AC1(3x5kW)
Rated Voltages 3 Phases
400V 3N~
Frequency
50/60Hz
Switching capacity per phase
21A
Sensor
Dimmer optional
Bench Temperature Sensor
Bench Sensors
Bench Temperature Sensor
Optional
Bench Combined Temperature – Humidity Sensor
Optional
