Savonia Fibercoated NS separator SAWO

Power rating from 9 to 24kW

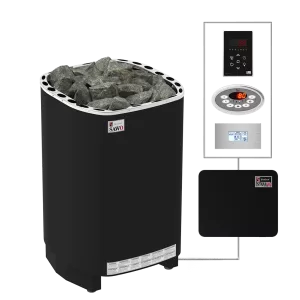

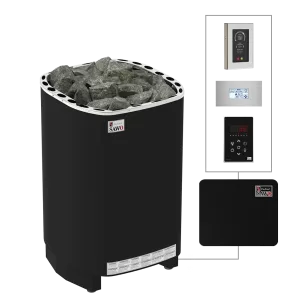

Savonia Fibercoated NS

» Power range 9,0 – 24,0kW
» Control: Separate
» Sauna Experience: Medium heat, with mild steam

Savonia models are electric heaters designed to withstand extreme heat with only little care and maintenance. They can handle large amount of stones for more pleasant sauna steam. Savonia heaters are with adjustable leg support that keeps the heater stand leveled on the floor. Suitable for especially for commercial saunas. Perfect especially for medium to large sized saunas to (8m³ – 42m³).

Available with cool-to-touch fiber coating.

INQUIRE

Specifications

Technical Data

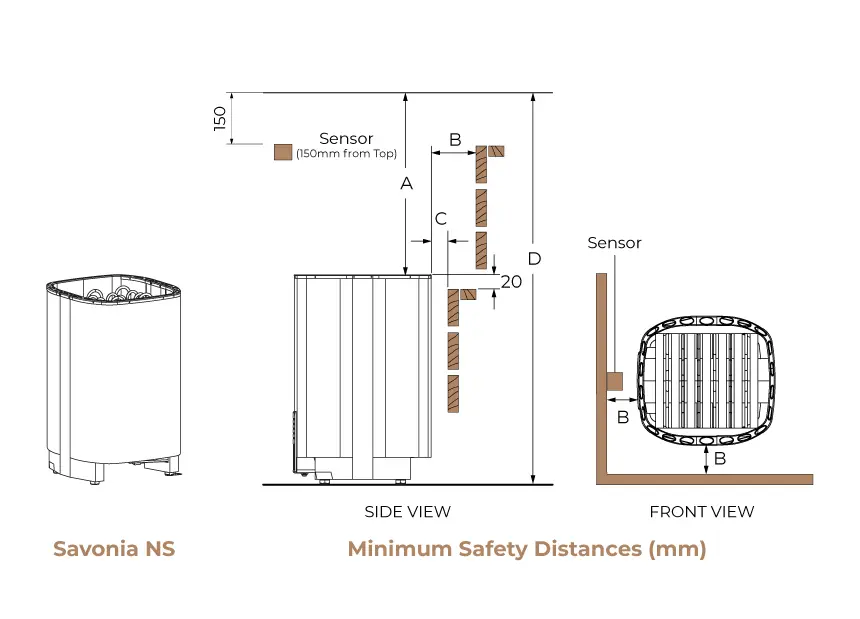

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG)	Minimum Safety Distances A \| B \| C \| D \| E
SAV-90NS	9,0	8 – 14	440 – 420 – 655	40 – 50	1200	110	50	1900
SAV-105NS	10,5	9 – 15	440 – 420 – 655	40 – 50	1200	120	60	1900
SAV-120NS	12,0	10 – 18	440 – 420 – 655	40 – 50	1400	130	70	210
SAV-150NS	15,0	13 – 23	590 – 420 – 655	60 – 75	1400	160	100	2100
SAV-180NS	18,0	17 – 29	590 – 420 – 655	60 – 75	1400	160	100	2100
SAV-180NS-V12	18,0	18 – 30	740 – 420 – 655	80 – 100	1400	160	100	2100
SAV-210NS-V12	21,0	22 – 35	740 – 420 – 655	80 – 100	1400	160	100	2100
SAV-240NS-V12	24,0	26 – 42	740 – 420 – 655	80 – 100	1400	160	100	2100
