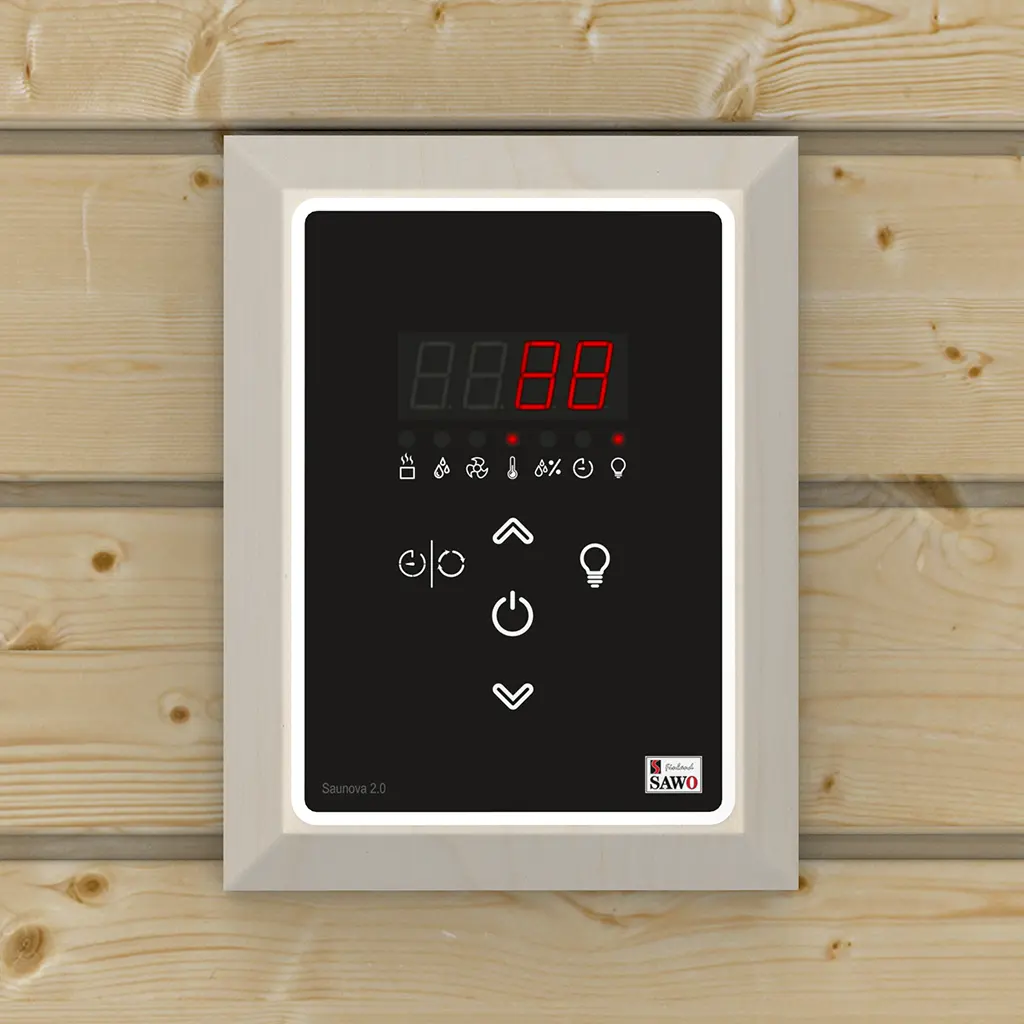

  • SAU UI V2 SpruceSauna Front

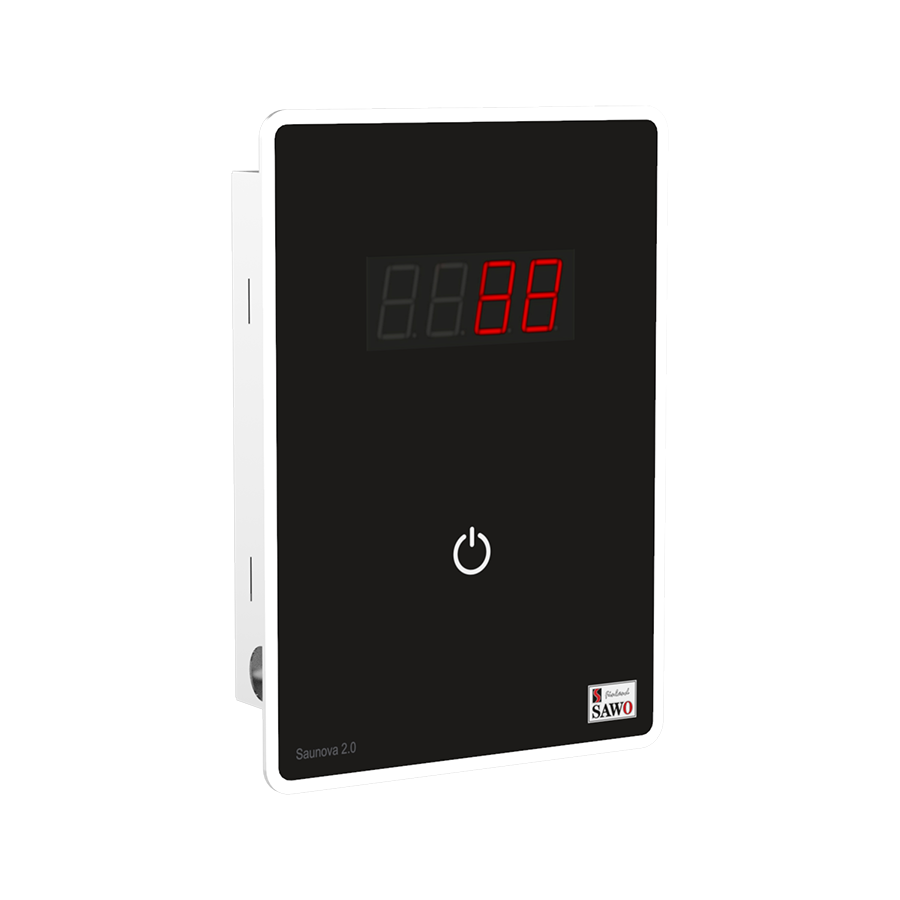

Saunova 2.0 (SAU-UI-V2)

» Easy and stylish user interface
» Direct control for Ni2 heaters, for NS heaters 2.3-9kW add Saunova 2.0
» Power Controller
» More than 9kW needs a Contactor
» Smart Controlling -feature
» Optional Fan and Combi -feature
» Dimensions: (W) 104 x (H) 147 x (D) 37mm

Saunova 2.0 is a practical control for small heaters up to 9 kilowatts. Perfect combined with Ni2 heaters, on which you will no longer need to have separate power controller.

Saunova 2.0 user interface can be placed inside or outside the sauna room! The system is with a smart controlling that alternately shuts down a heating element when a set temperature is reached. This process reduces temperature fluctuations that keeps heating elements to work at a balanced pace. Even more precise temperature measuring with additional bench sensor.

Suitable for all NS heaters until 9kW. Heaters over 9kW require separate Saunova Contactor Unit.

Specifications

Technical Data

Description Power Rating Remarks
Control
Rated Power 3 Phases 9kW AC1 (3x3kW)
Rated Voltage 3 Phases 400V 3N~
Rated Power Single Phases 9kW AC1
Rated Voltage Single Phases 230V 1N~
Frequency 50/60Hz
Switching capacity per phase 16A
Sauna temperature range 10-110°C
Maximum session time(preset) 1,2,4,6,12,18,24h Restrictions apply according to IEC/EN 60335-2-53
Dimensions INNOVA S types
User Interface (W) 104 x (H) 147 x (D) 37
Power Controller (W) 265 x (H) 245 x (D) 75
Weight INNOVA S types
User Interface 350g
Power Controller 1150g
Rated Power 3 Phases 5kW AC1
Rated Power Single Phases 3kW AC1
Rated Voltage 230V 1N~
Switching capacity 16A
Maximum sauna temperature for steamer operation 80°C or *55°C *Depending on the type of Sensor 2.
Automatic water filling Optional
Cabin Light Min 20W, max 100W
Rating 230V 1N~,100W AC1
Fan Fan without starting capacitor.
Rating 230V 1N~,0.5A
Power Extension Unit Power expansion up to a maximum of
Rated Power 3 Phases 9kW AC1(3x3kW) 18kW
Rated Voltages 3 Phases 400V 3N~
Frequency 50/60Hz
Switching capacity per phase 16A
Sensor
Bench Temperature Sensor
Bench Sensors
Bench Temperature Sensor Optional
Bench Combined Temperature – Humidity Sensor Optional
