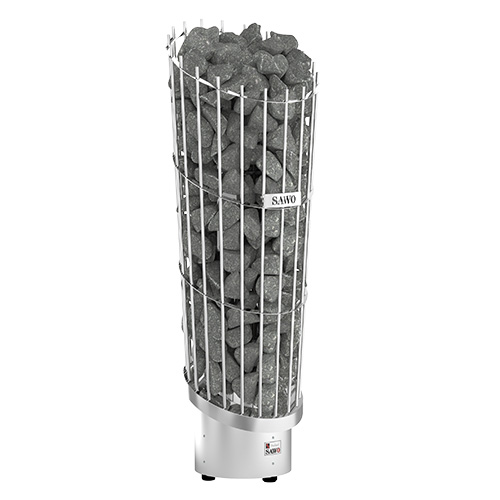

Phoenix

Complete your sauna with a unique oval shape ring heater. The Phoenix has angled rings that hold the pile of stones in an upward broadening form. There are more exposed stones on the hot heater top that generate a bigger amount of steam when water is thrown unto it.

Phoenix heater has faster heating-up time and can hold up to 85 kG of stones. The removable casing is made from tubes that expose the stones better. Phoenix heater is available with a separate control unit or with integrated Saunova control system (Ni2).

Installation Diagram

Tower Series:

∙ Tower Round
∙ Tower Wall
∙ Tower Corner
∙ Phoenix
∙ Orion

∙ Aries Round
∙ Aries Wall
∙ Aries Corner
∙ Cubos

Technical Data

User Manual
Heater Model KW Sauna Room
min (m3) max		 Control Size of heater (mm)
WIDTH DEPTH HEIGHT		 Stone
(kG)
PNX3-45NS 4,5 3 – 6 separate 370 – 340 – 1080 85
PNX3-60NS 6 5 – 9 separate 370 – 340 – 1080 85
PNX3-75NS 7,5 7 – 13 separate 370 – 340 – 1080 85
PNX3-90NS 9 8 – 14 separate 370 – 340 – 1080 85
PNX6-90NS 9 8 – 15 separate 525 – 475 – 1175 130
PNX6-105NS 10,5 9 – 16 separate 525 – 475 – 1175 130
PNX6-120NS 12 11 – 18 separate 525 – 475 – 1175 130
PNX6-150NS 15 14 – 25 separate 525 – 475 – 1175 130
PNX6-180NS 18 18 – 28 separate 525 – 475 – 1175 130

Ni2 Heaters

Compatible control: Saunova 2.0

User Manual (Ni2)
Download Brochure
Heater Model KW Sauna Room
min (m3) max		 Control Size of heater (mm)
WIDTH DEPTH HEIGHT		 Stone
(kG)
PNX3-45Ni2 4,5 3 – 6 Saunova 2.0 370 – 340 – 1080 85
PNX3-60Ni2 6 5 – 9 Saunova 2.0 370 – 340 – 1080 85
PNX3-75Ni2 7,5 7 – 13 Saunova 2.0 370 – 340 – 1080 85
PNX3-90Ni2 9 8 – 14 Saunova 2.0 370 – 340 – 1080 85
PNX6-90Ni2 9 8 – 15 Saunova 2.0 525 – 475 – 1175 130
