Nimbus Combi

• Combination of heater and steamer with scent basins
• Allows to choose from normal sauna to steam sauna
• Metal parts and water tank made from stainless steel
• Unique design of the heating elements makes water tank cleaning easy
• Operated with an external control unit
• Optional fiber-coating makes it safer and cool to touch
• Power rating from 9 kW up to 18 kW

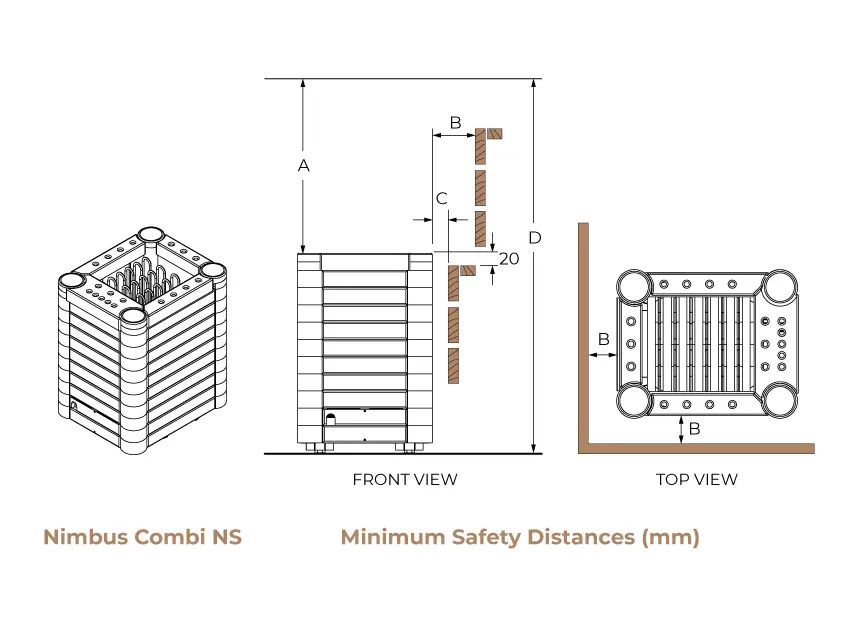

Installation Diagram

Combi Series:

∙ Scandia Combi
∙ Mini Combi
∙ Nordex Combi

∙ Savonia Combi
∙ Nimbus Combi

Technical Data

User Manual
Heater Model KW Sauna Room
min (m3) max		 Control Size of heater (mm)
WIDTH DEPTH HEIGHT		 Stone
(kG)		 Soapstone
(kG)
NIMC-90NS 9 8 – 14 separate 575 – 470 – 690 40-50 90
NIMC-105NS 10,5 9 – 15 separate 575 – 470 – 690 40-50 90
NIMC-120NS 12 10 – 18 separate 575 – 470 – 690 40-50 90
NIMC-150NS 15 13 – 23 separate 775 – 470 – 690 60-75 120
NIMC-180NS 18 17 – 29 separate 775 – 470 – 690 60-75 120
