• SAWO sauna heaters tower CUB3 NB
  • Cubos NB inside sauna 3

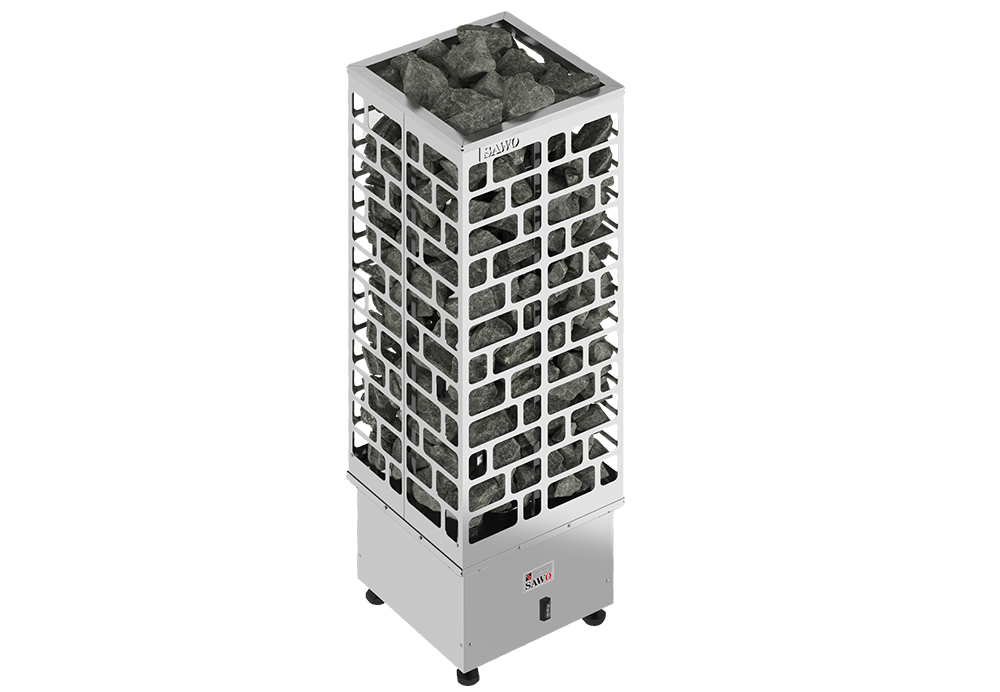

Cubos NB

» Power range 4,5 – 9,0kW
» Control: Built-in
» Sauna Experience: Medium heat, Humid
» Built-in stone spacer
» Stainless steel casing
» Adjustable legs
» Optional heater guard and integration collar

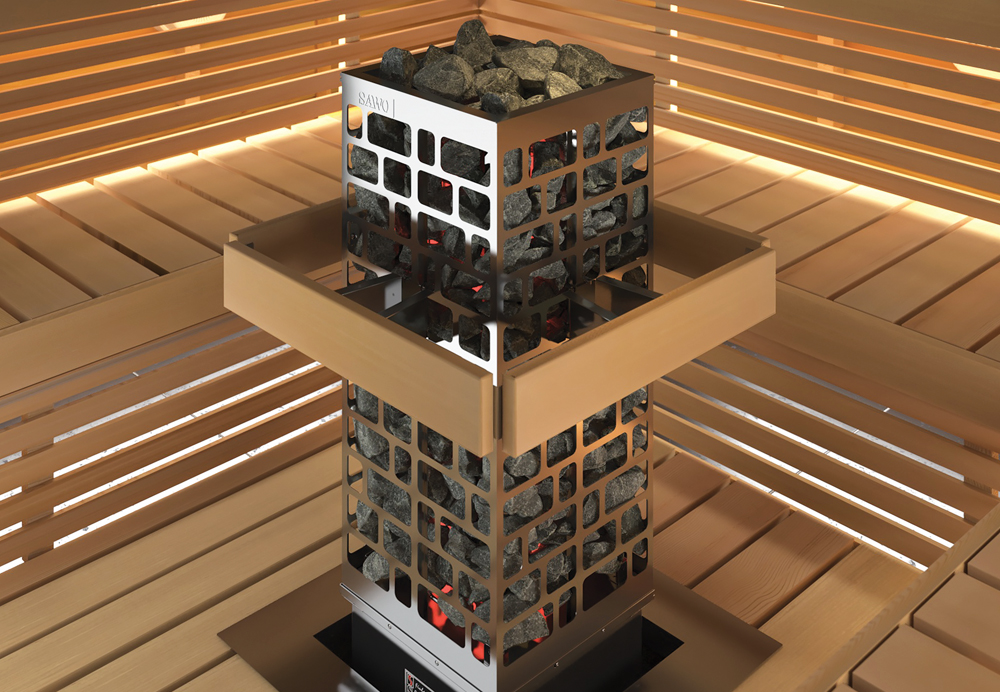

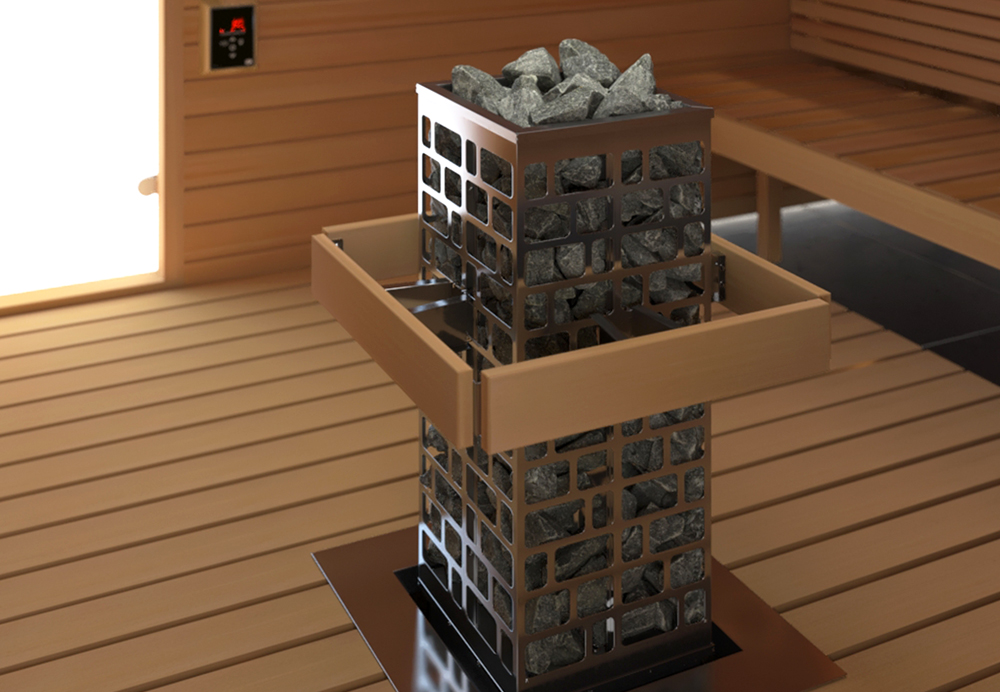

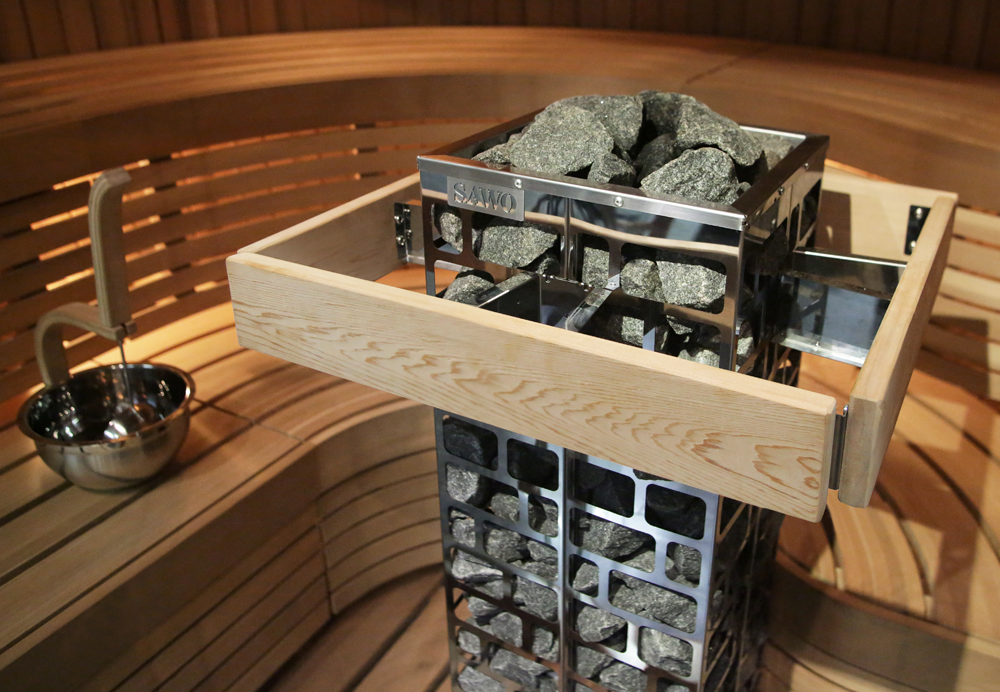

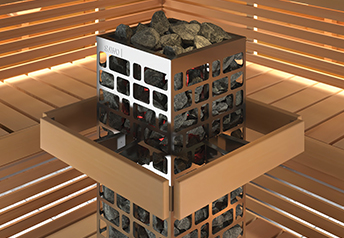

Cubos is 3-in-1 heater! It can be placed in the middle, corner or wall of the sauna room. Additional protective covers will add support for wall and corner installation. This modern and versatile heater is one of a kind.

Cubos is also available with Saunova 2.0 control (Ni2). Ni2 heaters are effortless to install, easy and energy-efficient to use. Perfect choice for modern saunas.

Technical Data

Heater Model kW Sauna Room
min (m3) max
Size of heater (mm)
Width Depth Height
Stones (KG) Minimum Safety Distances
A | AA | B
CUB3-45NB 4,5 3 – 6 340 – 340 – 930 75 100 100 1900
CUB3-60NB 6,0 5 – 9 340 – 340 – 930 75 100 100 1900
CUB3-75NB 7,5 7 – 13 340 – 340 – 930 75 100 100 1900
CUB3-90NB 9,0 8 – 14 340 – 340 – 930 75 100 100 1900

Safety Features

Energy Efficient

Durable Contructions

Efficient Heating

User-Friendly Controls

ACCESSORIES

Middle Installation Wooden Guard Rail
(Cedar or Aspen)
Wall Installation Wooden Guard Rail
(Cedar or Aspen)
Corner Installation Wooden Guard Rail
(Cedar or Aspen)
Middle Integration Collar
(Cedar or Aspen)
Wall Integration Collar
(Cedar or Aspen)
Corner Integration
(Cedar or Aspen)
Middle Integration Collar
(Cedar or Aspen)
Wall Integration Collar
(Stainless)
Corner Integration
(Stainless)
Middle Integration Collar
(Soapstone)
Wall Integration Collar
(Soapstone)
Corner Integration Collar
(Soapstone)
Cozy Tank
(Water volume 0.6L)
Sauna Stones
(size: 20kg)
Protective Cover Accessory

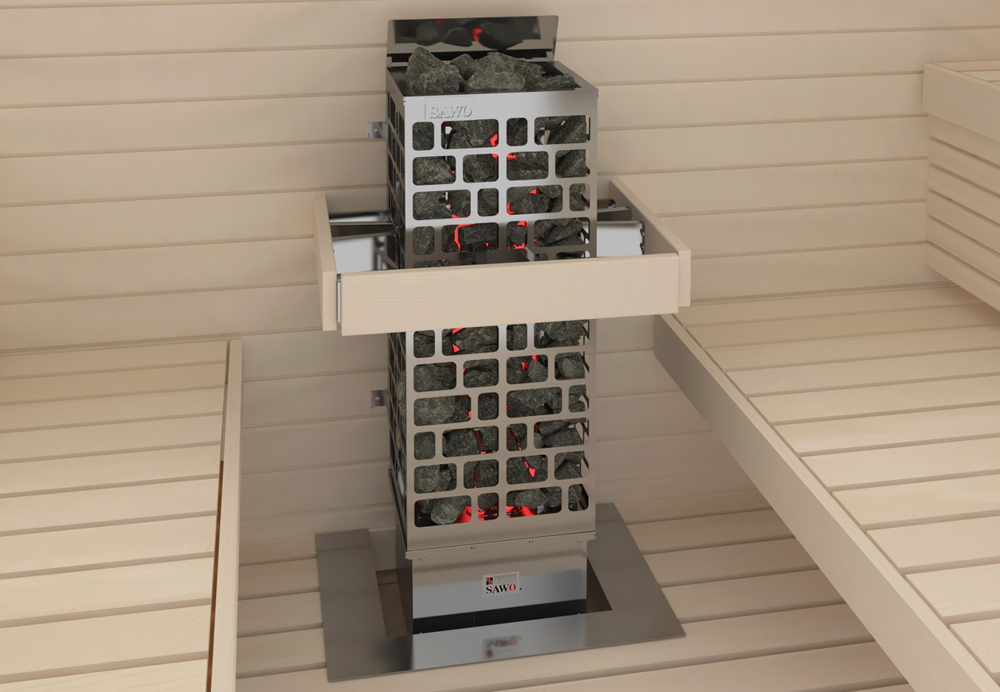

Wall Installation

Use Cubos Protective Cover for wall installation. Best for sauna designs with limited space. The set of the protective cover for wall includes covering sheet and a reflector that directs heat even to lowest parts of the sauna room

Model Size of Cover (mm)
Width Depth Height
CUB-PROCOV-WL 660 – 300 – 65

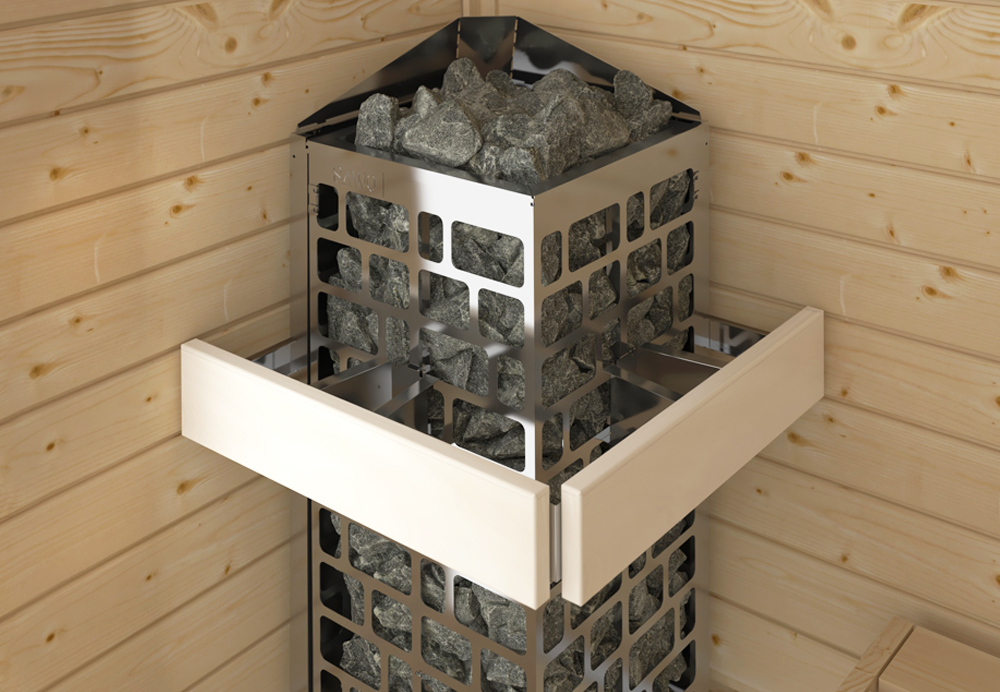

Corner Installation

Cubos quickly changes to corner model with Protective Cover for corner. Corner installation saves space and enables using different bench designs. The protective cover for corner set includes two pieces of covering sheet, a connection rod and a heat reflector.

Model Size of Cover (mm)
Width Depth Height
CUB-PROCOV-CNR 660 – 300 – 100
