Phoenix NS separator SAWO

Power rating from 4,5 to 18kW

Phoenix NS

» Power range 4,5 – 18,0kW

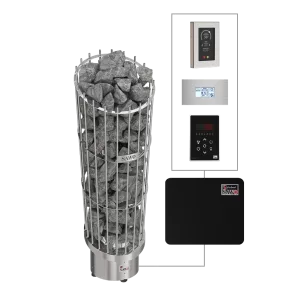

» Control: Separate
» Stainless tubes hold the stones
» Stone spacer inside to prolong heating elements lifespan
» Floor standing
» Can fit from 85kg to 130kg of stones
» Adjustable legs

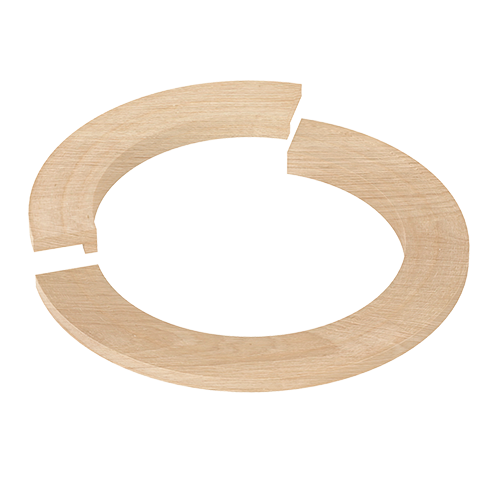

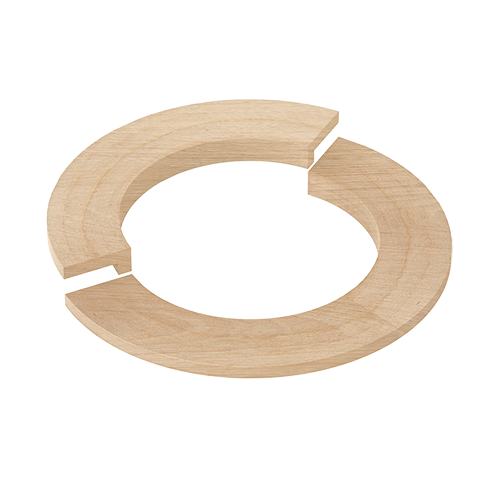

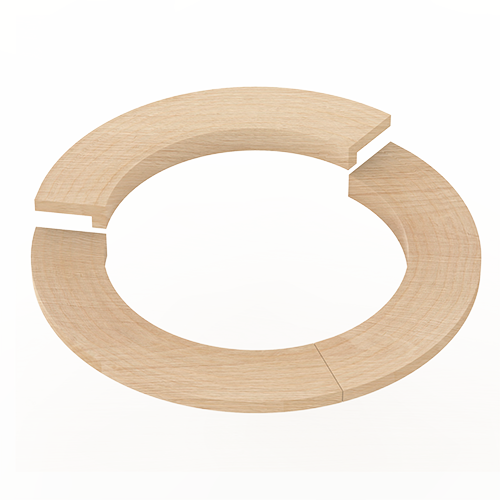

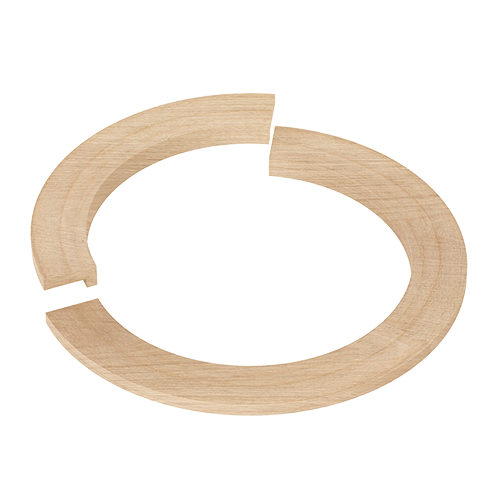

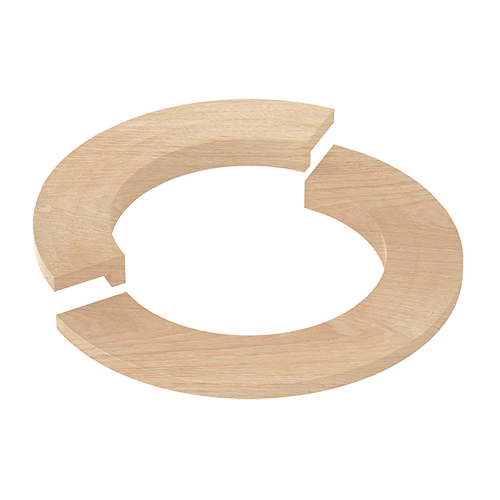

» Optional integration collar

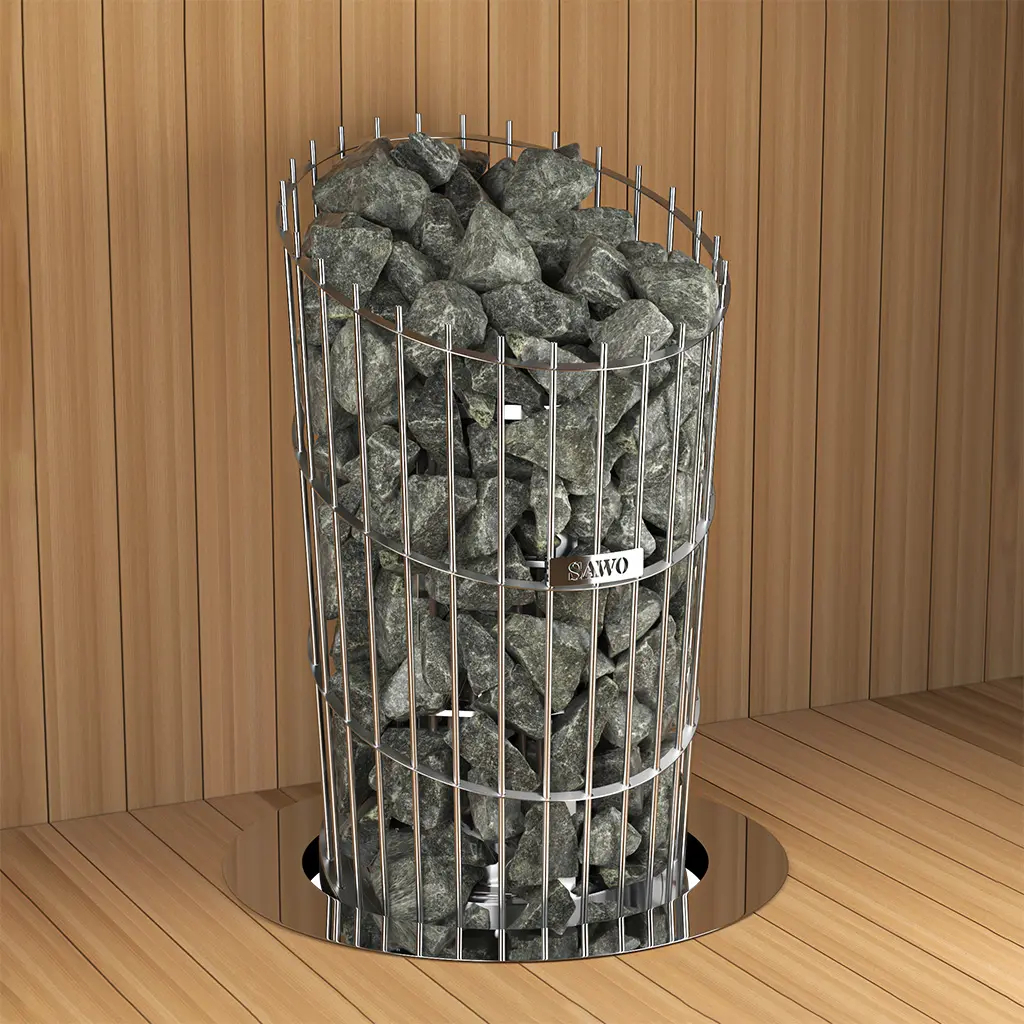

Phoenix heater is developed to produce steam from the lowest to the highest part of the sauna, similar to smoke-sauna. Choose from Round, Wall or Corner model depending on your sauna layout. Phoenix heater have suitable kW from small to large saunas (2m³-40m³).

INQUIRE

Specifications

Technical Data

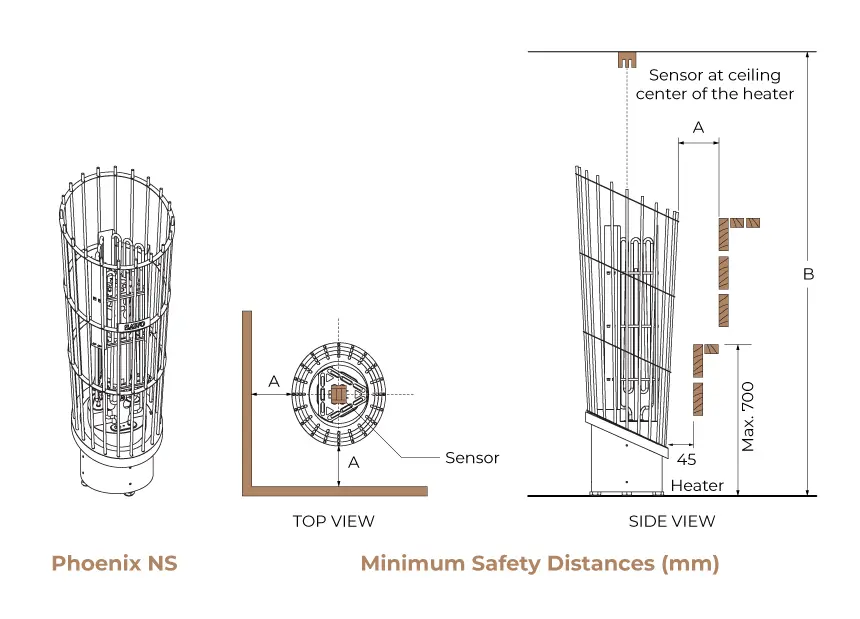

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG)	Minimum Safety Distances A \| B
PNX3-45NS	4,5	3 – 6	375 – 340 – 1100	85	100	1900
PNX3-60NS	6,0	5 – 9	375 – 340 – 1100	85	125	1900
PNX3-75NS	7,5	7 – 13	375 – 340 – 1100	85	125	1900
PNX3-90NS	9,0	8 – 14	375 – 340 – 1100	85	150	1900
PNX6-90NS	4,5	8 – 15	525 – 475 – 1175	130	150	1900
PNX6-105NS	10,5	9 – 16	525 – 475 – 1175	130	150	1900
PNX6-120NS	12,0	11 – 18	525 – 475 – 1175	130	150	2100
PNX6-150NS	15,0	14 – 25	525 – 475 – 1175	130	150	2100
PNX6-180NS	18,0	18 – 28	525 – 475 – 1175	130	175	2100
