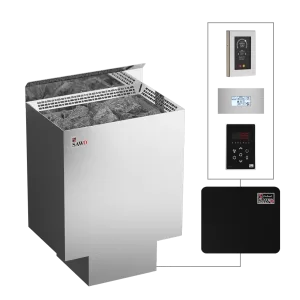

Nordex NS separator SAWO

Power rating from 4,5 to 9kW

Nordex NS

» Power range 4,5 – 9,0kW
» Streamlined, minimal design concept
» Sauna Experience: Hot, Sharp heat

Nordex heater with minimalist and modern design. This heater is also available with black metal casing.

Perfect especially for small to medium sized saunas to (3m³ – 14m³).

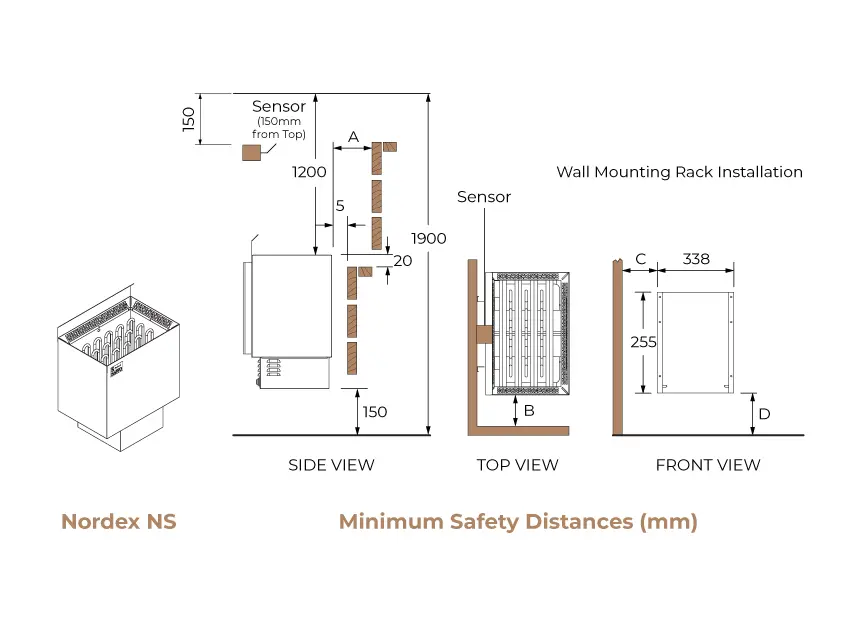

Heater Model	KW	Sauna Room min (m3) max	Size of heater (mm) WIDTH DEPTH HEIGHT	Stones (kG)	Minimum Safety Distances A \| B \| C \| D
NR-45NS	4,5	3 – 6	400 – 295 – 515	18 – 22	50	50	80	320
NR-60NS	6,0	5 – 9	400 – 295 – 515	18 – 22	50	50	80	320
NR-80NS	8,0	7 – 13	400 – 295 – 590	18 – 22	80	80	110	395
NR-90NS	9,0	8 – 14	400 – 295 – 590	18 – 22	80	80	110	395
