Mini X NS separator SAWO

Power rating from 2,3 to 3,6kW

Mini X NS

» Power range 2,3 – 3,6kW
» Available controlling NS
» Sauna Experience: Hot, Sharp heat

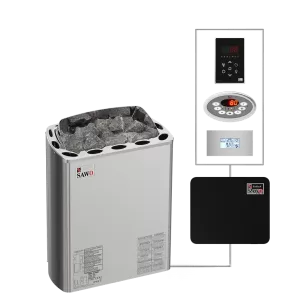

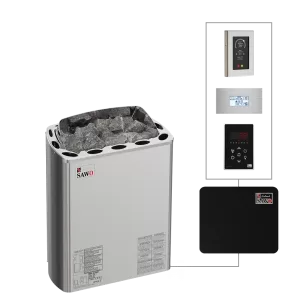

Mini X heater is an ideal heater for sauna rooms with extremely limited space. It is placed in corner of sauna room, allowing the maximum space for sauna use. Available also with cool-to-touch fiber-coating.

Best for small sauna (1.3m³-6m³).

INQUIRE

Specifications

Technical Data

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG)	Minimum Safety Distances A \| B \| C
MX-23NS	2,3	1,3 – 2,5	330 – 200 / 320 – 495	11	30	20	60
MX-30NS	3,0	2 – 4	330 – 200 / 320 – 495	11	35	25	65
MX-36NS	3,6	3 – 6	330 – 200 / 320 – 495	11	40	25	65
