Mini Fibercoated NB separator SAWO

Power rating from 2,3 to 3,6kW

Mini Fibercoated NB

» Power range 2,3 – 3,6 kW
» Available controlling NB
» Sauna Experience: Hot, Sharp heat

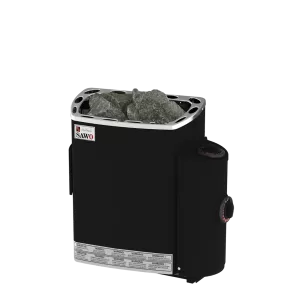

Mini Fibercoated heater is the solution for small, 1 – 2 persons sauna rooms. Due to its small size and from left to right reversible control unit, Mini heater can be placed in very small locations.

Best for small sauna (1.3m³-6m³).

INQUIRE

Specifications

Technical Data

Heater Model	KW	Sauna Room min (m3) max	Size of heater (mm) WIDTH DEPTH HEIGHT	Stones (kG)	Minimum Safety Distances A \| B \| C \| D \| E
MN-23NBF	2,3	1,3 – 2,5	435 – 215 – 455	11	100	20	100	140	155
MN-30NBF	3,0	2 – 4	435 – 215 – 455	11	100	20	100	140	155
MN-36NBF	3,6	3 – 6	435 – 215 – 455	11	100	20	100	140	155
