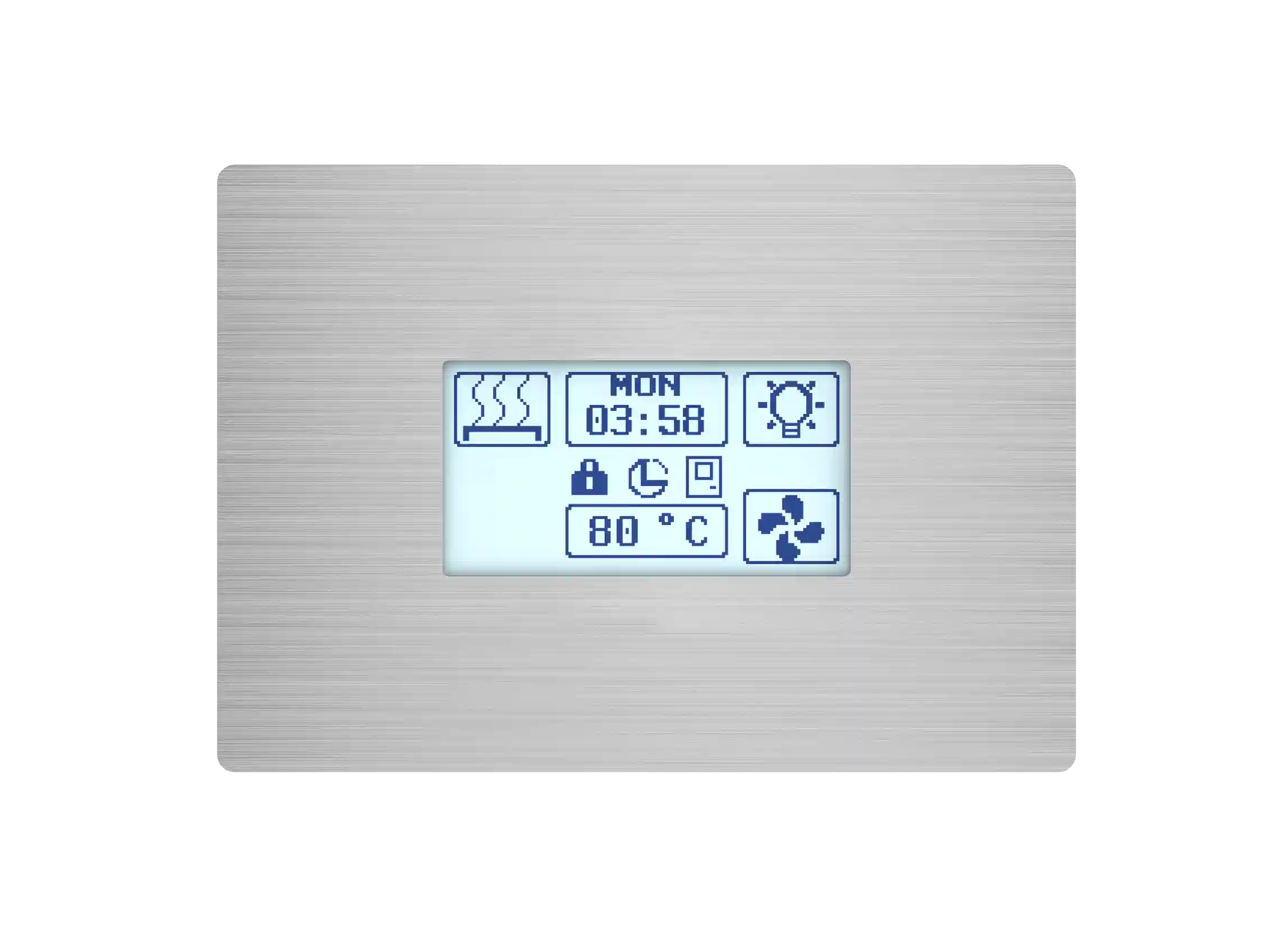

Innova Stainless Steel Touch (INT-S-SST)

»  Smart control automatically shuts off the heating element at the desired temperature
»  Connect to INP-C power controller for NS heaters up to 15kW; add INP-S contactor for units over 15kW
»  Compatible with door sensor
»  Prerun timer for weekly sessions
»  Easy mode and key lock for added convenience
»  Blackout memory and power consumption counter
»  Optional fan, dimmer, and Combi features
»  Can integrate with household automation systems
»  Best with optional bench sensor (INN-BTEMP) and humidity sensor (INN-HUM) for Combi heaters
»  Package includes Stainless Touch User Interface and 5m RJ12 cable

Modern and stylish Innova Stainless Steel Touch is equipped with useful features which make your sauna experience more enjoyable.

Specifications

Technical Data

Description Power Rating Remarks
Control
Rated Power 3 Phases 15kW AC1 (3x5kW)
Rated Voltage 3 Phases 400V 3N~
Rated Power Single Phases 9kW AC1
Rated Voltage Single Phases 230V 1N~
Frequency 50/60Hz
Switching capacity per phase 21A
Sauna temperature range 40-110°C
Maximum session time(preset) 4,6,12,18,24h Restrictions apply according to IEC/EN 60335-2-53
Dimensions INNOVA S types
User Interface (W) 180 x (H) 105 x (D) 31
Power Controller (W) 265 x (H) 245 x (D) 75
Dimensions INNOVA B types (W) 265 x (H) 245 x (D) 75
Weight INNOVA S types
User Interface 150g (Touch)
Power Controller 1500g
Weight INNOVA B types 1630g(Touch)
Steamer Optional
Rated Power 3 Phases 5kW AC1
Rated Power Single Phases 3kW AC1
Rated Voltage 230V 1N~
Switching capacity 21A(3 Phases), 13A (1 Phase)
Maximum sauna temperature for steamer operation 80°C or *55°C *Depending on the type of Sensor 2.
Automatic water filling Optional
Automatic drain valve Optional
Cabin Light Dimmer optional
Rating 230V 1N~,100W AC1
Fan Optional (with speed control)
Rating 230V 1N~,0.5A
Contactor Unit Additional Power expansion to maximum of 30kW
Rated Power 3 Phases 15kW AC1(3x5kW) 30kW
Rated Voltages 3 Phases 400V 3N~
Frequency 50/60Hz
Switching capacity per phase 21A
Sensor Dimmer optional
Bench Temperature Sensor
Bench Sensors
Bench Temperature Sensor Optional
Bench Combined Temperature – Humidity Sensor Optional
