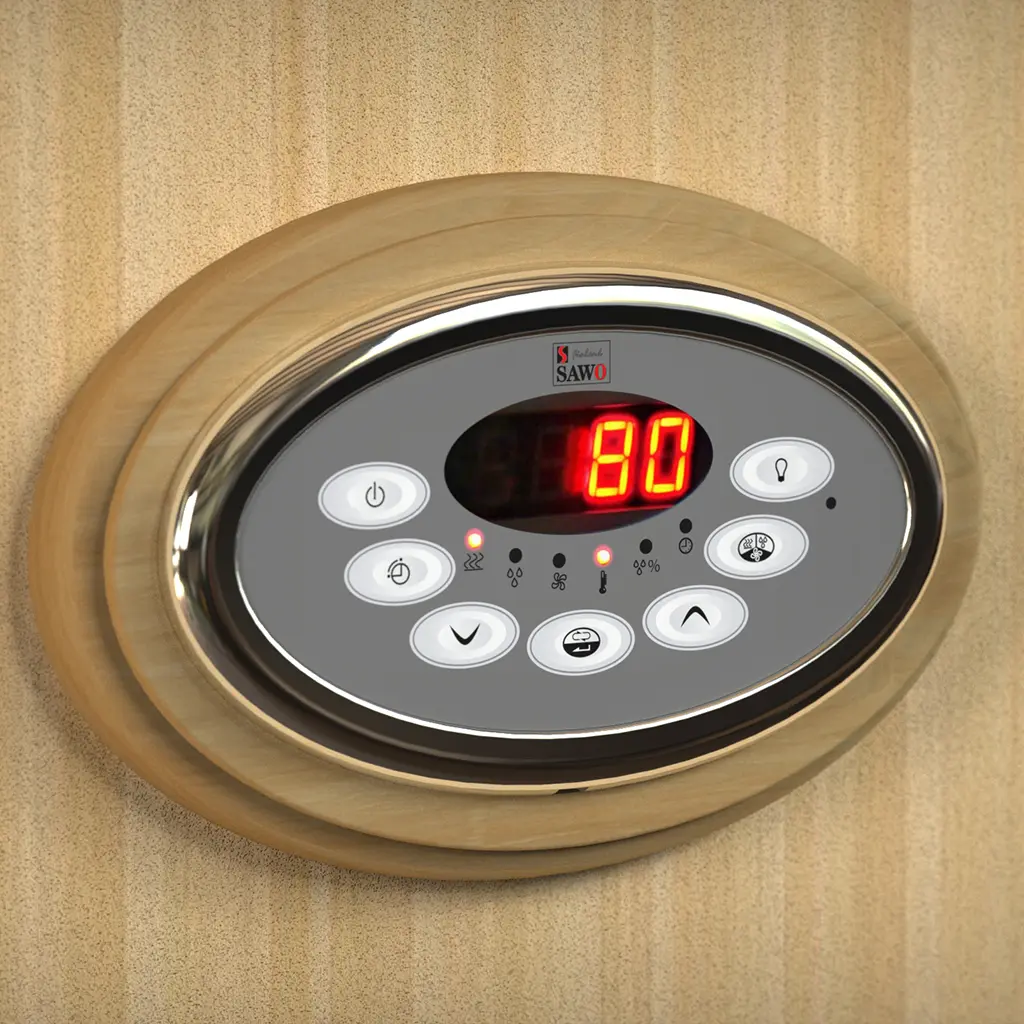

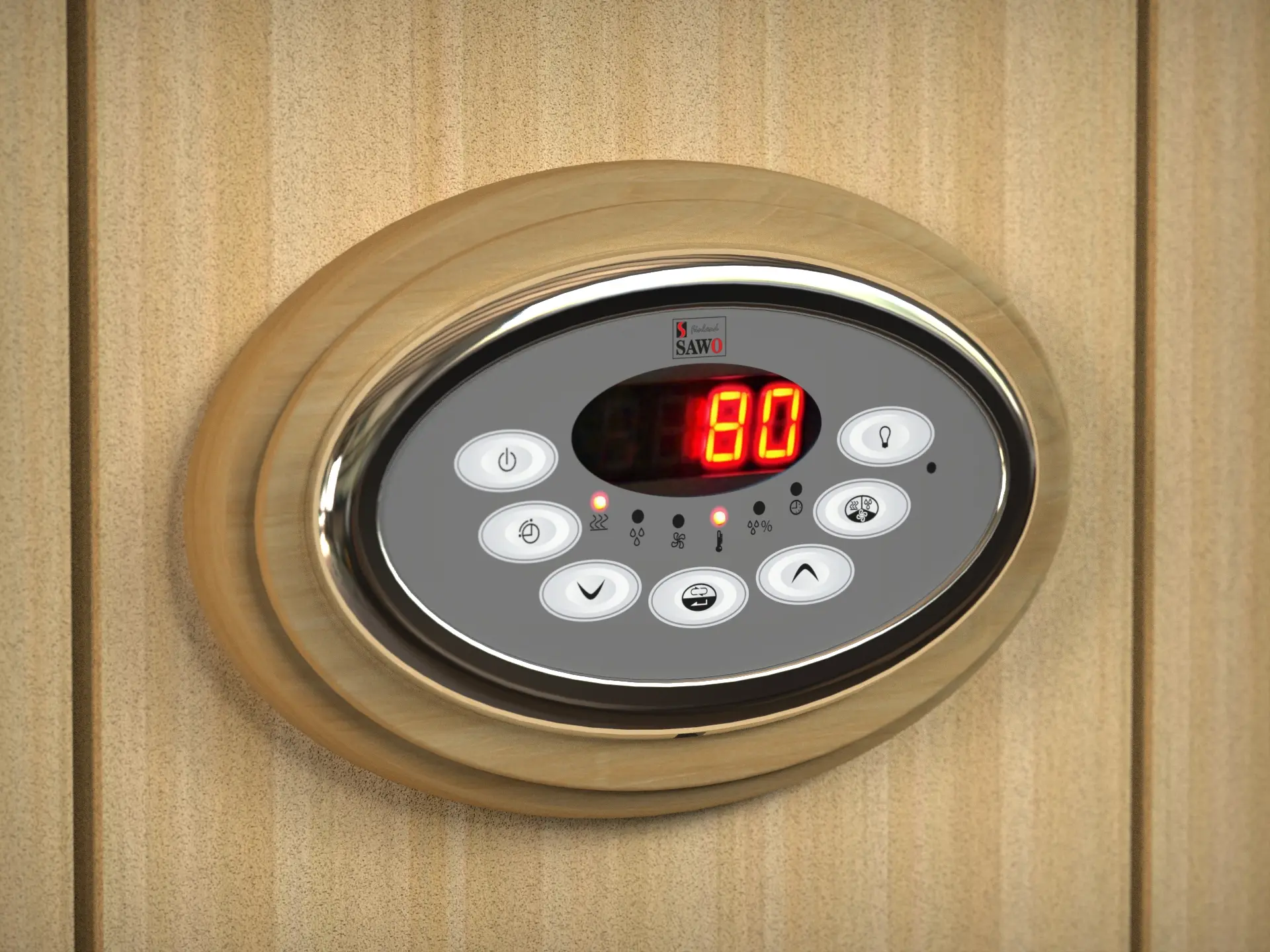

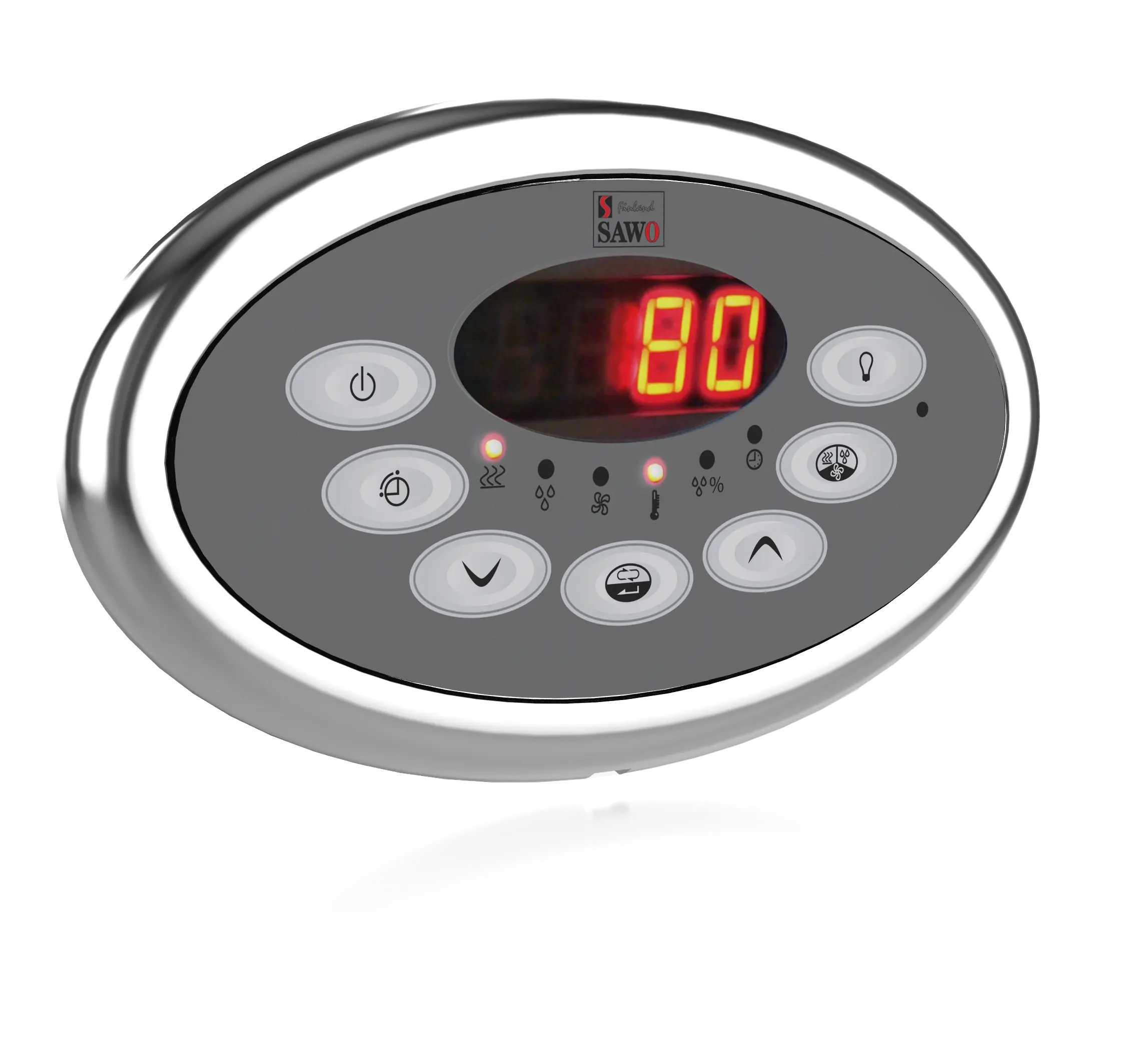

Innova Classic (INC-S)

» Smart Controlling -feature automatically shuts down heating element when desired temperature is reached
» Connect with INP-C power controller to use with any NS heater until 15kW. For heaters over 15kW, add INP-S contactor unit
» Compatible with Door Sensor
» Prerun timer
» Optional Fan, Dimmer and Combi feature
» Package includes Classic User Interface and 5m RJ12-cable

Separate control unit
Innova Classic control unit consists of a separate control panel and a power controller which can handle power up to 15 kW. It is packed with features such as door sensor, pre-timer, smart energy-saving, and steady and even power distribution! It has a clear LED-display and seven buttons for easy use. Temperature sensor with over-heat fuse and 4 m connection cable are included in the package.

Separate Innova Contactor Unit is required when heater power is exceeding 15 kW.

Built-in control unit
Innova Classic built-in control unit consists of a power controller with an integrated control panel. It is equipped with the same features same as the Innova Classic separate control unit. The only difference is that all comes in one neat package!

Separate Innova Contactor Unit is required when heater power is exceeding 15 kW.

Specifications

Technical Data

Description Power Rating Remarks
Control
Rated Power 3 Phases 15kW AC1 (3x5kW)
Rated Voltage 3 Phases 400V 3N~
Rated Power Single Phases 9kW AC1
Rated Voltage Single Phases 230V 1N~
Frequency 50/60Hz
Switching capacity per phase 21A
Sauna temperature range 40-110°C
Maximum session time(preset) 4,6,12,18,24h Restrictions apply according to IEC/EN 60335-2-53
Dimensions INNOVA S types
User Interface (W) 180 x (H) 105 x (D) 31
Power Controller (W) 265 x (H) 245 x (D) 75
Dimensions INNOVA B types (W) 265 x (H) 245 x (D) 75
Weight INNOVA S types
User Interface 150g(touch)
Power Controller 1500g
Weight INNOVA B types 1630g(Touch)
Rated Power 3 Phases 5kW AC1
Rated Power Single Phases 3kW AC1
Rated Voltage 230V 1N~
Switching capacity 21A(3 Phases), 13A (1 Phase)
Maximum sauna temperature for steamer operation 80°C or *55°C *Depending on the type of Sensor 2.
Automatic water filling Optional
Automatic drain valve Optional
Cabin Light
Rating 230V 1N~,100W AC1
Fan Optional (with speed control)
Rating 230V 1N~,0.5A
Power Extension Unit Power expansion up to a maximum of
Rated Power 3 Phases 15kW AC1(3x5kW) 30kW
Rated Voltages 3 Phases 400V 3N~
Frequency 50/60Hz
Switching capacity per phase 21A
Sensor
Bench Temperature Sensor
Bench Sensors
Bench Temperature Sensor Optional
Bench Combined Temperature – Humidity Sensor Optional
