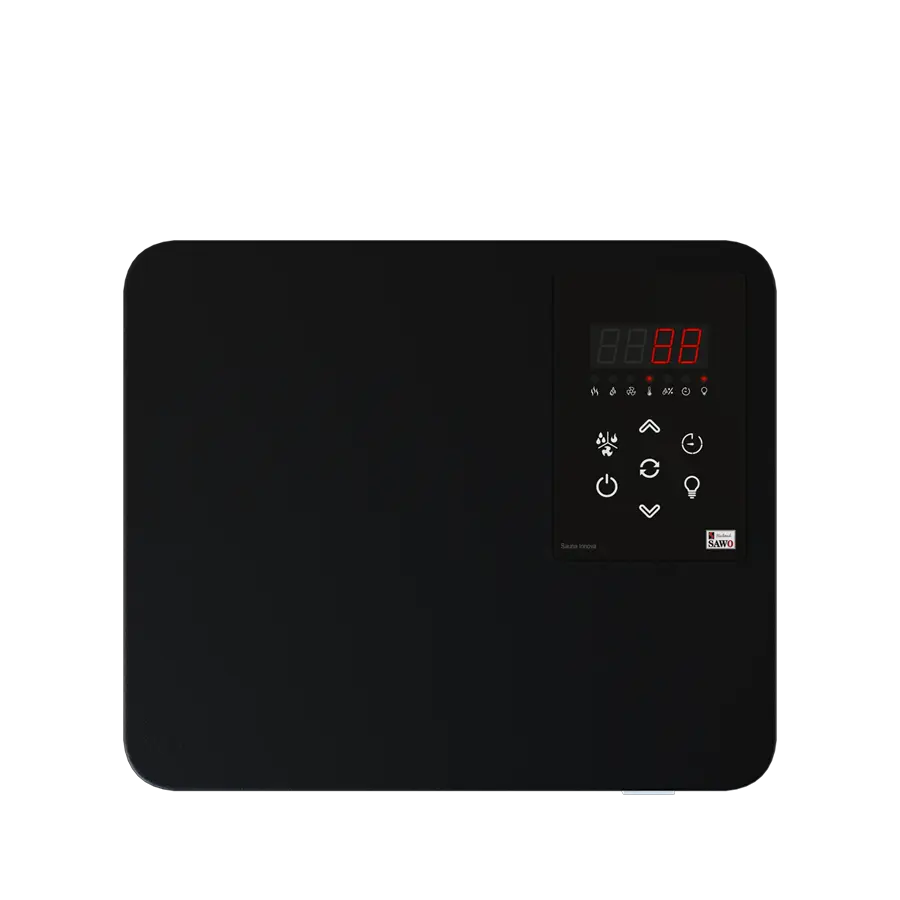

Innova 2.0 Power Controller (INP-C)

» Smart control automatically shuts off the heating element at the desired temperature
» Connect to Innova User Interface for heaters up to 15kW, or add INP-S contactor for larger units
»  New casing design for easier installation with more space and wiring options
»  Compatible with door sensor
»  Prerun timer for weekly sessions
»  Easy mode, key lock, and blackout memory for added convenience
» Power consumption counter
» Optional fan, dimmer, and Combi functions
» Can integrate with household automation systems
» Best with optional bench sensor (INN-BTEMP) and humidity sensor (INN-HUM) for Combi heaters
» Includes Innova Power Controller, 5m RJ12 cable, temperature sensor with basswood holder, and 5m silicone wiring

Connect the Innova 2.0 Power Controller with any Innova controls to use with NS heaters.

The control casing has more room in it for the electrician to work with, which makes installation easier than ever! New modernized casing has more space for easier and faster installation. Flexible wiring options with strain relief provision on 4 sides, including the back part for wiring to be completely hidden.

TECHNICAL DETAILS
Suitable Heaters
2.3 – 15kW*
* with Contactor Unit 15-24kW
Temperature Range 10° -110°C
Rated Voltage 400V 3N~ (3Phase)
230V 1N~ (1Phase)
Max. Session Time 4h, 6h, 12h, 18h, 24h
PRODUCT DIMENSIONS
Innova 2.0 Power Controller
(INP-C-V2)
L: 32cm x H: 27cm x W: 8cm
2.44KG
Innova 2.0 Power Controller with Dimmer & Fan
(INP-C-DF-V2)
L: 32cm x H: 27cm x W: 8cm
2.6KG
Innova 2.0 Power Controller Combi
(INP-C-C-V2)
L: 32cm x H: 27cm x W: 8cm
2.85KG
Innova 2.0 Power Controller Combi with Dimmer & Fan
(INP-C-CDF-V2)
L: 32cm x H: 27cm x W: 8cm
2.88KG

Smart Energy-Saving

Smart Controlling

Timer

Temperature Control

User-Friendly Controls
